Therapie-Liege mit 6 verstellbaren Polstersegmenten
Modell 2880-..XL

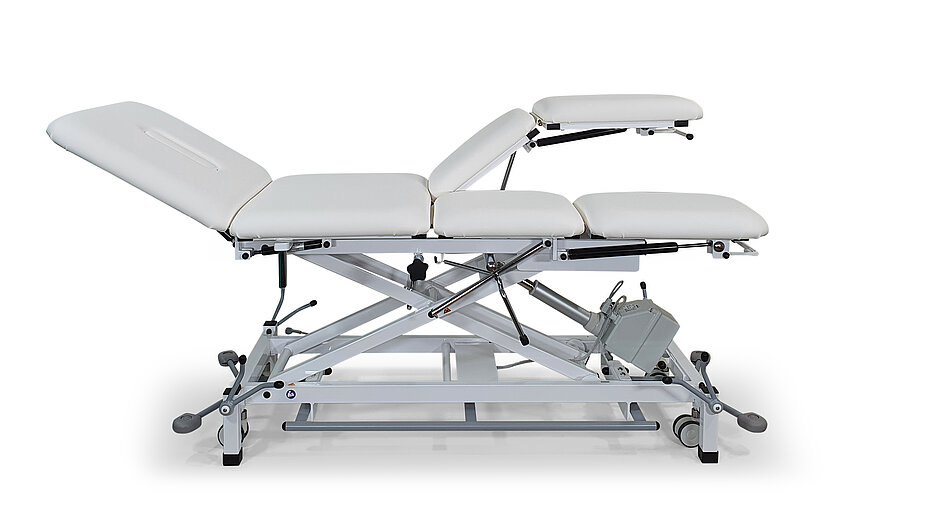

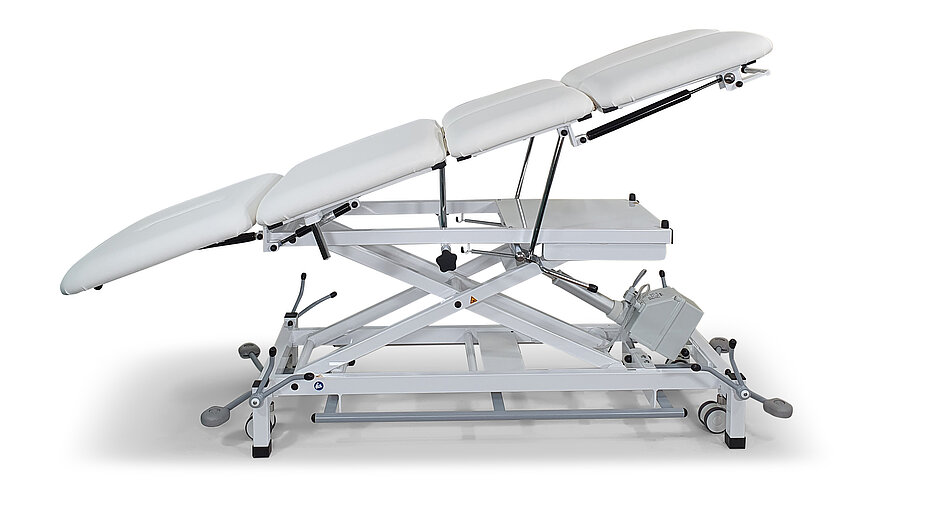

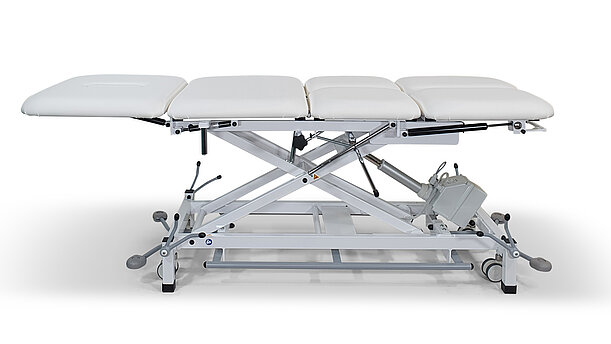

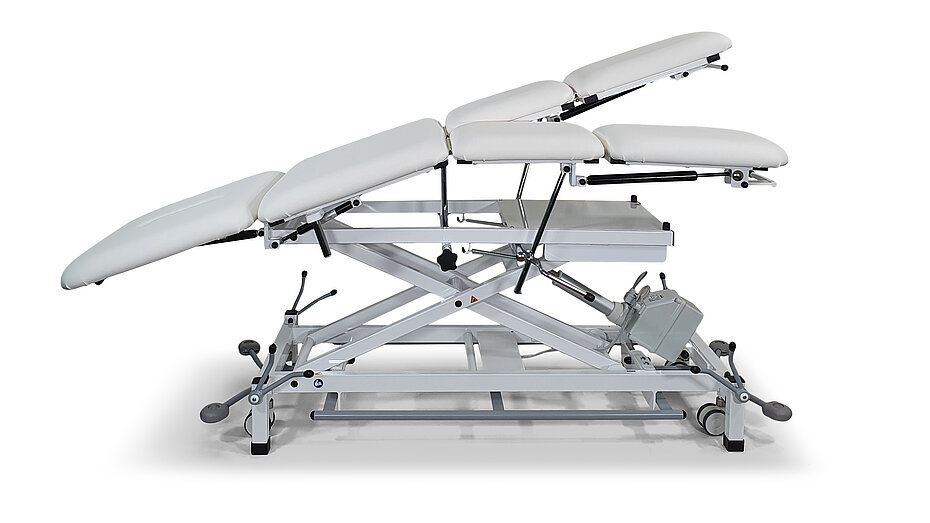

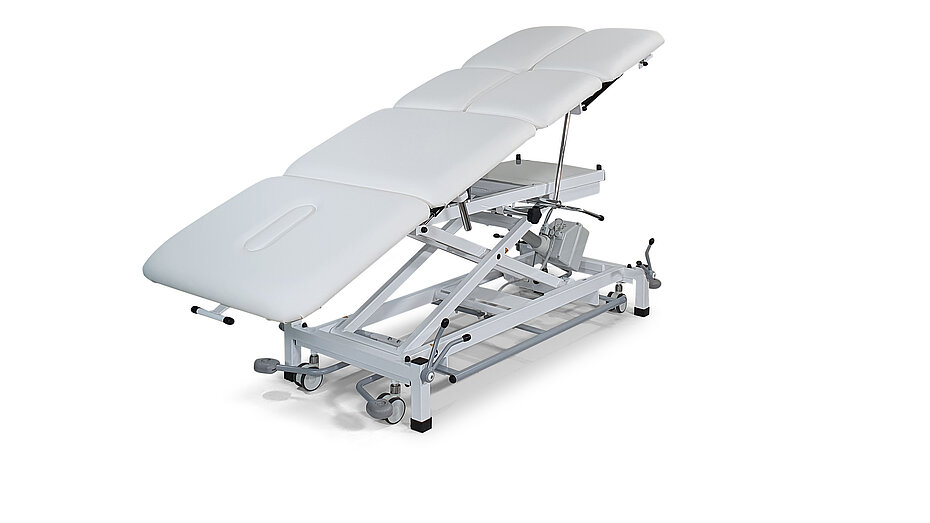

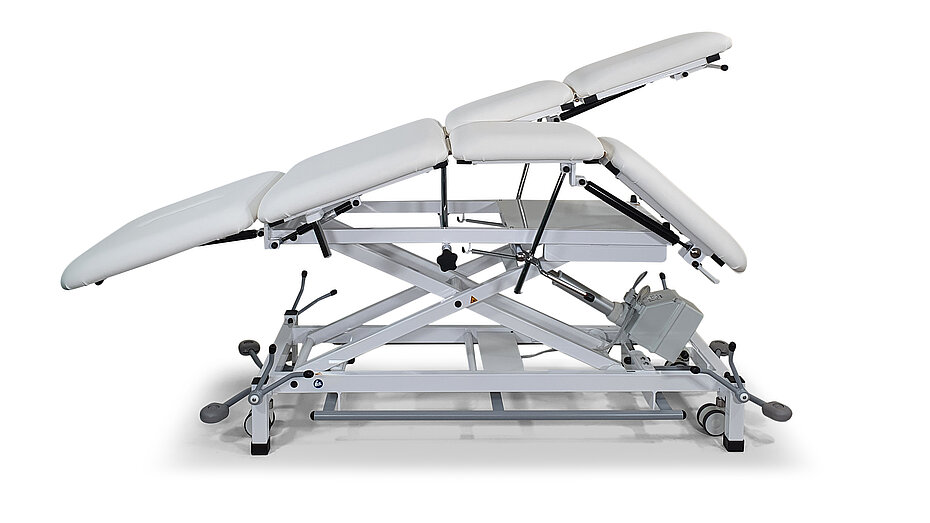

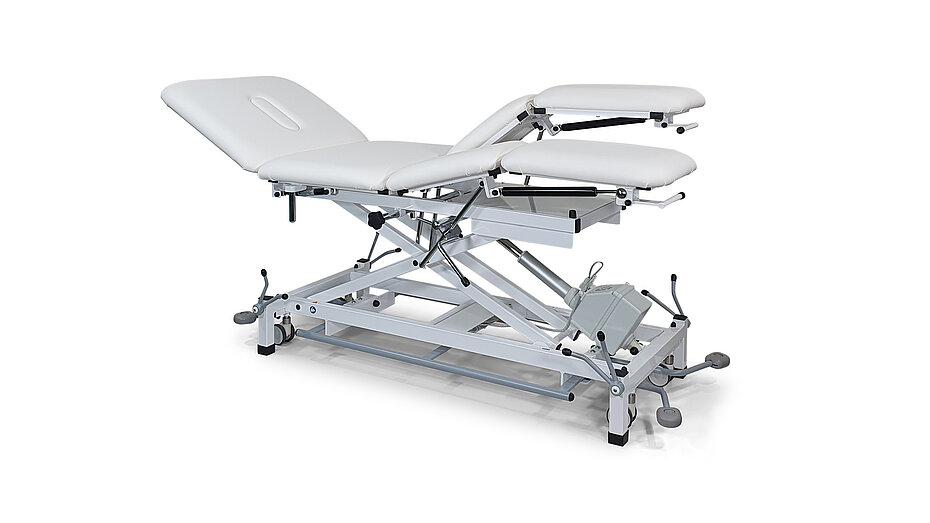

Modell 2880-00XLE (upholstery colour 64-702 white) with options:
Wheel-lifting/fixing mechanism (045N), Surrounding foot control (095E)
2880-00XLE and 2880-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2880-03XLE and 2880-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2880-04XLE and 2880-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 6-sectioned

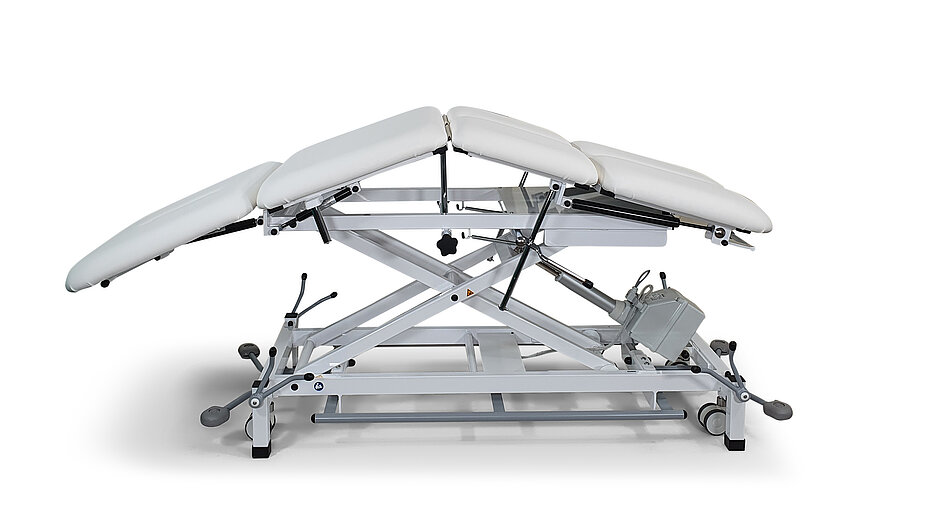

- Middle part stepless adjustable to roof shape, Trendelenburg position possible
- Foot part 4-sectioned, split transversal and longitudinal
- Table is not movable
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment (model 2880-..XLE):
510 mm – 950 mm in 22 sec.
o Manual hydraulic height adjustment (model 2880-..XL/H):
540 mm – 960 mm - Length overall: 1.950 mm
- Width overall: 700 mm
- Load capacity: 250 kg (max. weight of patient)
Height adjustment optionally:
upholstery colour: 64-702 white
- Electronical height adjustment (510 mm – 950 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
- Manual foot operated height adjustment (530 mm – 950 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame because of use of roller bearings
- Widely-spaced feet and a high dead weight guarantee stability
- Table not moveable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
6-sectioned:
- Head part stepless up- (+45°) and downwards (-40°) adjustable by gas spring
- Length head part: 540 mm; with nose opening and upholstery part to close
- Middle part upwards manually adjustable to roof position, supported by 2 gas springs, due to 2 guide rods which are fixed by screwing a clamping lever, this adjustment system is without clearance
- Length middle part: 530 mm
- Foot part 4-sectioned, split transversal and longitudinal
- Every foot section stepless adjustable (+60°) by a self-fixing system of 2 guide rods, without clearance (foot sections independently adjustable)
- Lower foot sections additionally stepless adjustable (-65°) by gas spring
- Length foot part: upper foot section: 405 mm | lower foot section: 485 mm
- Trendelenburg position possible
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Electric motorized adjustment to roof
position
Foot switch rail, lateral, on both sides,
security adjustment
Foot switch rail, surround,
security adjustment
- 1 foot switch (low voltage) (art. no. 091E)
- 1 hand switch (low voltage) (art. no. 090E)
- Foot switch fixation at the underframe (art. no. 092E)
- Electric motorized adjustment to roof position (art. no. 065E)
- Foot switch rail, lateral, on both sides of the table (art. no. 094E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered - Foot switch rail, surround (art. no. 095E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Loss of nose opening and upholstery part to close
Head part 3-sectioned, arm rests downwards adjustable from -25° to +45° and removable
- Loss of nose opening and upholstery part to close (Art. no. 1615-EF)
- Head part 3-sectioned, arm rests downwards adjustable from -25° to +45° and removable
(art. no. 010K not possible)
measures: Head part: L. 540 mm x W. 370 mm | Arm rests: L. 500 mm x W. 160 mm (Art. no. 056)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm
- Paper roll holder, mounted under head part (not protruding), for width 700 mm, not in case of 3-sectioned head part (Art. no. 010K)
- Width of upholstery: 800 mm (Art. no. 009)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (Art. no. B1772)

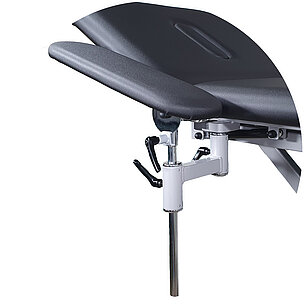

1 arm rest, fixed, swivelling and removable, additional revolving and tiltable
- 1 arm rest, fixed, swivelling and removable, additional revolving and tiltable (Art. no. 088)
