Heavy-Weight table with fixed height
Model 208-.. and 209-..

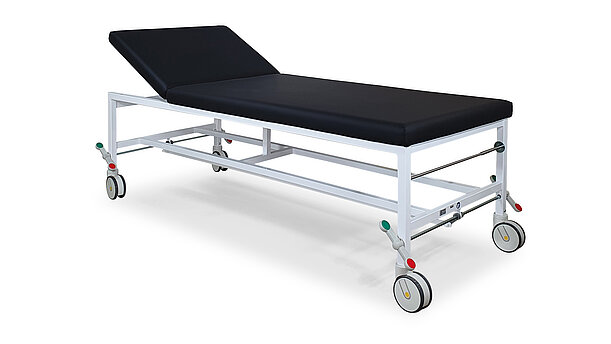

Model 209-00 (upholstery colour 64-716 black) with option: Movable on heavy-weight castors with central lock, ∅ 125 mm (1189)
Model 208-00 (width: 650 mm) white powder coated (RAL 9010)

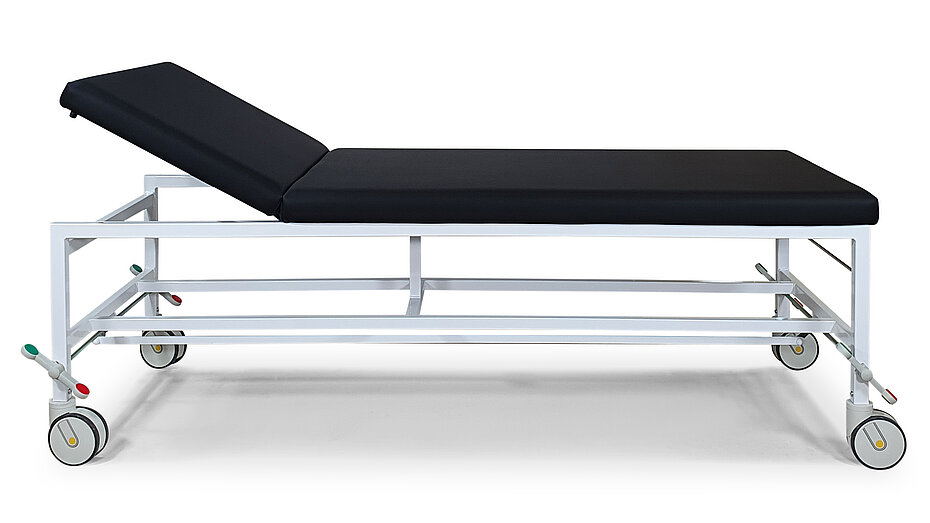

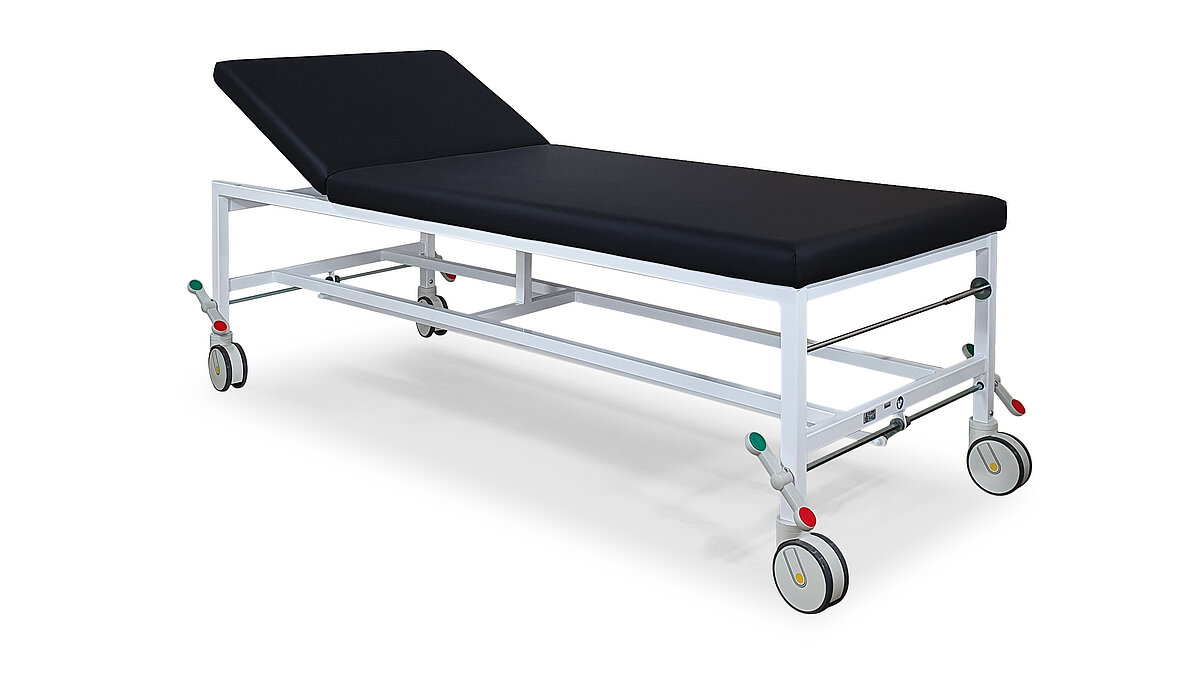

Model 209-00 (width: 800 mm) white powder coated (RAL 9010)
Model 208-03 (width: 650 mm) white aluminium powder coated (RAL 9006)
Model 209-03 (width: 800 mm) white aluminium powder coated (RAL 9006)
Model 208-04 (width: 650 mm) grey aluminium powder coated (RAL 9007)
Model 209-04 (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Cross brace between the feet, longitudinal brace and support in the middle for better stability
- High load capacity: 400 kg
- Table is not movable
- Dewert-hygiene-equipment
Technical data:
- Length overall: 1950 mm
- Width overall:
Model 208-..: 650 mm
Model 209-..: 800 mm - Height: 650 mm
- Load capacity: 400 kg (max. weight of patient)
Technology:
- Frame construction made of square pipe 35 x 35 x 3 mm
- With cross brace between the feet, longitudinal brace and support in the middle for better stability
- Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility - Galvanised steel hinges connect the upholstery parts
- Frame welded as one unit
- Load capacity: 400 kg
upholstery colour: 64-716 black
- Frame construction made of square pipe 35 x 35 x 3 mm
- With cross brace between the feet, longitudinal brace and support in the middle (2x) for better stability
- Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility - Galvanised steel hinges connect the upholstery parts
- Frame welded as one unit
- Load capacity: 400 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless adjustable (0° - +40°) by gas spring, length head part: 550 mm
- Foot part: fixed, length foot part: 1400 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of pure foam in volume weight of 75 and comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option

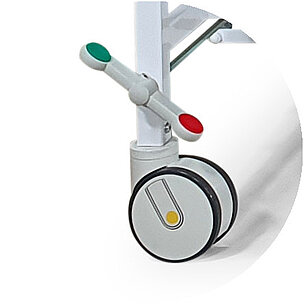

Movable on heavy-weight twin castors
with central lock, Ø 125 mm
- Movable on heavy-weight twin castors with central lock, Ø 125 mm (Art. no. 1189)
Nose opening
Art. no. 1620
Upholstery part to close
- Nose opening in head part (Art. no. 1610)
- Upholstery part to close the opening (Art. no. 1620)

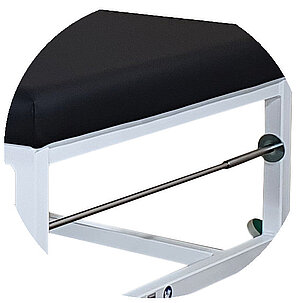

Paper roll holder,
for width of lying surface
650 mm / 800 mm
- Paper roll holder, for width 650 mm, width of paper: 540 mm (art. no. 1210)
- Paper roll holder, for width 800 mm, width of paper: 690 mm (art. no. 1220)

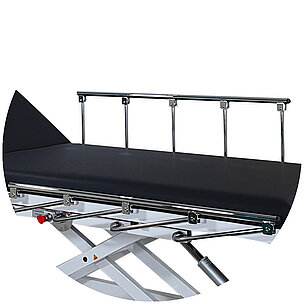

1 side guard foldable, chromium-plated,
completely made of steel tube,
length: 1060 mm
- 1 side guard foldable, chromium-plated, completely made of steel tube, length: 1060 mm (Art. no. 1080)
1 push handle
(picture shows chromuim-plated push handle)
- 1 push handle, RAL 9006 powder coated (Art. no. 1810)
