Therapy table with 4 adjustable upholstery segments
Model 2895-..XL

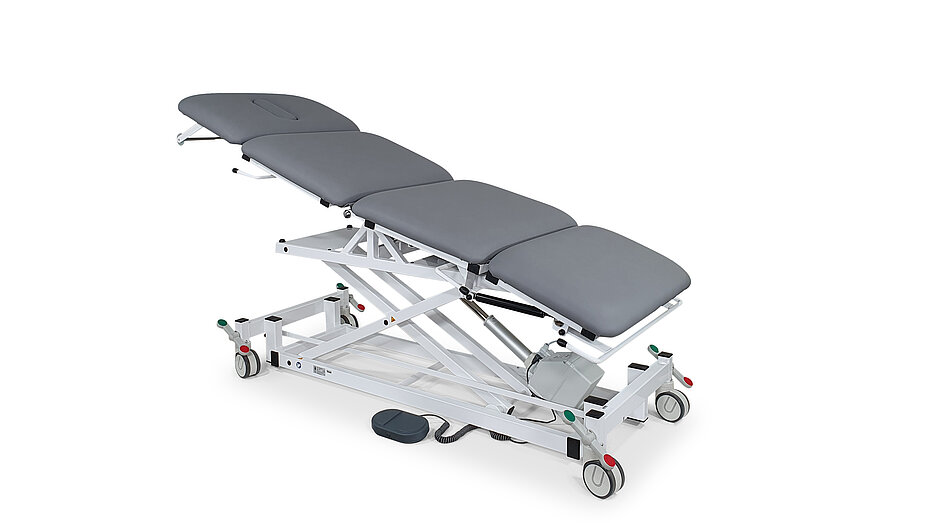

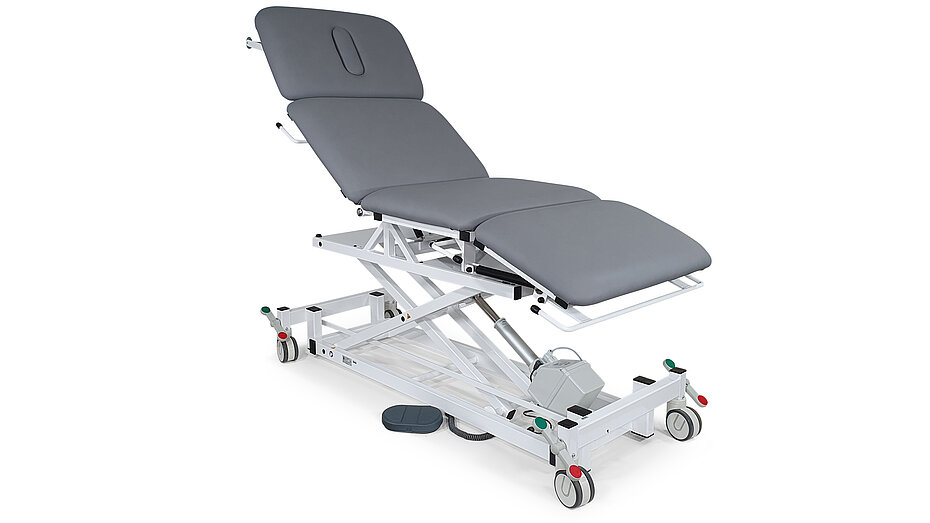

Model 2895-00XLE (upholstery colour 64-153 platin) with options:
Movable on castors with central lock (049), paper roll holder (010F/K), without hand switch, foot switch
2895-00XLE and 2895-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2895-03XLE and 2895-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2895-04XLE and 2895-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 4-sectioned
- Multifunctional and independent adjustment of upholstery sections

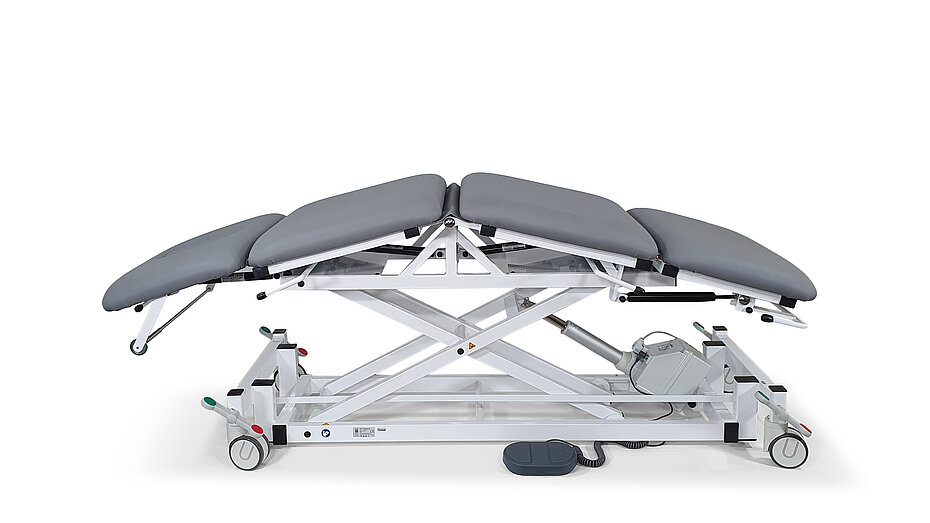

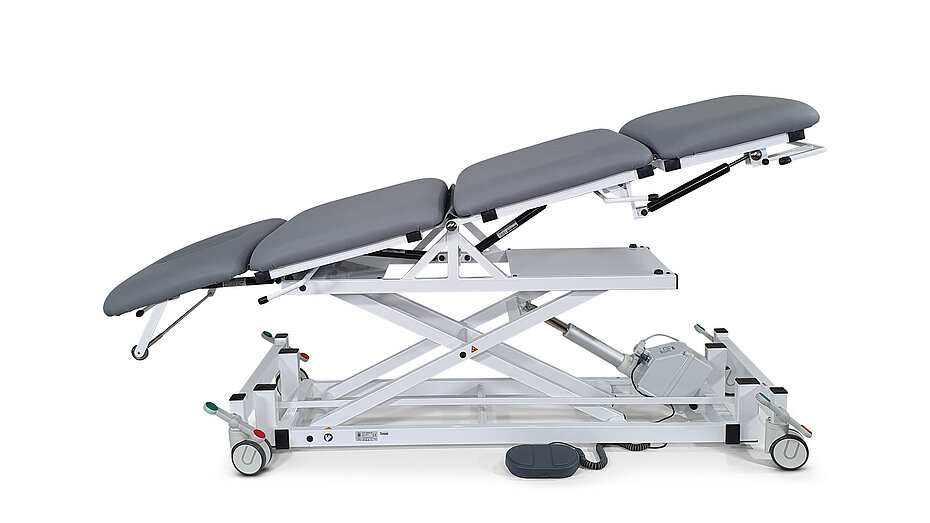

- Possibilities of positioning the surface parts: Roof shape, Trendelenburg, reverse Trendelenburg
- Table is not movable
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment: 570 mm – 1010 mm in 22 sec.
o Manual hydraulic height adjustment: 600 mm - 1020 mm - Length overall: 1950 mm
- Width overall: 700 mm
- Load capacity: 200 kg (max. weight of patient)
Height adjustment optionally:
upholstery colour: 64-153 platin
- Electronical height adjustment (570 mm – 1010 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
- Manual foot operated height adjustment (600 mm – 1020 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 200 kg, tested with fourfold static load (800 kg)
Upholstery:
Lying surface:
4-sectioned:

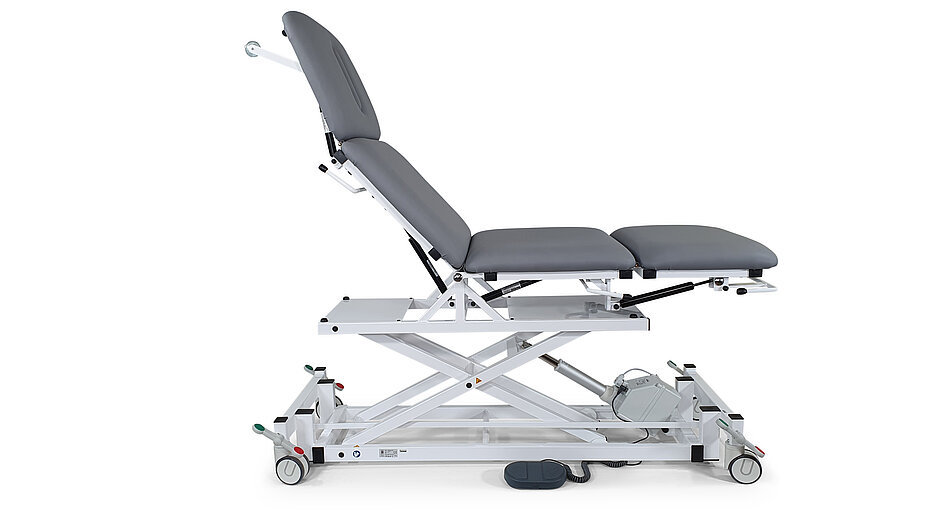

- Head part stepless up- (+40°) and downwards (-35°) adjustable by gas spring
- Length head part: 420 mm; with nose opening and upholstery part to close
- Middle part stepless up- (+45°) and downwards (-15°) adjustable by gas spring
- Length middle part: 550 mm
- Foot part 2-sectioned, split transversal
- Upper foot segment stepless up- (+50°) and downwards (-15°) adjustable by gas spring
- Lower foot segment stepless up- (+35°) and downwards (-30°) adjustable by gas spring
- Length foot part: upper foot segment: 550 mm | lower foot segment: 420 mm
- Possibilities of positioning the surface parts: Roof shape, Trendelenburg, reverse Trendelenburg
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option

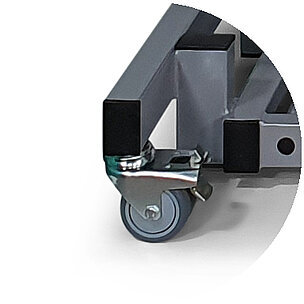

Movable on twin
castors Ø 75 mm,
each with total lock

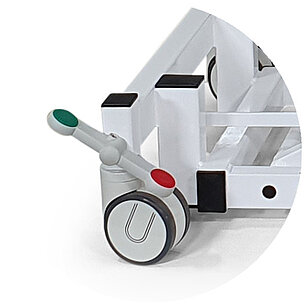

Movable on twin castors, Ø 100 mm
with central lock
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on twin castors Ø 75 mm, each with total lock (art. no. 077N)
- Movable on twin castors Ø 100 mm with central lock (art. no. 049)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 044N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
- 1 foot switch (low voltage) (art. no. 091E)
- 1 hand switch (low voltage) (art. no. 090E)
- Foot switch fixation at the underframe (art. no. 092E)
Loss of nose opening and upholstery part to close
- Loss of nose opening and upholstery part to close (Art. no. 1615-EF)

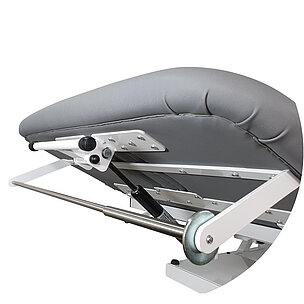

Paper roll holder, mounted under head
part (not protruding), for width 700 mm
- Paper roll holder, mounted under head part (not protruding), for width 700 mm (art. no. 010F/K)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (Art. no. B1770)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (Art. no. B1772)
