Gymnastic tables for therapy according to Bobath and Vojta
Series 2800XL
Model 2800-00E (upholstery colour 64-717 deep sea) with option:
Movable on twin castors with central lock (046), without hand switch, foot switch
2800-00XLE (width: 1000 mm) white powder coated (RAL 9010)
2800-03XLE (width: 1000 mm) white aluminium powder coated (RAL 9006)
2800-04XLE (width: 1000 mm) grey aluminium powder coated (RAL 9007)
2802-00XLE (width: 1100 mm) white powder coated (RAL 9010)
2802-03XLE (width: 1100 mm) white aluminium powder coated (RAL 9006)
2802-04XLE (width: 1100 mm) grey aluminium powder coated (RAL 9007)
2804-00XLE (width: 1200 mm) white powder coated (RAL 9010)
2804-03XLE (width: 1200 mm) white aluminium powder coated (RAL 9006)
2804-04XLE (width: 1200 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 1-sectioned
- Table is not movable
- Height adjustment by an electromotive drive
- Dewert-hygiene-equipment
Technical data:
- Height adjustment: 480 mm – 920 mm in 22 sec.
- Length overall: 1950 mm
- Width overall:
Model 2800-..XLE: 1000 mm
Model 2802-..XLE: 1100 mm
Model 2804-..XLE: 1200 mm - Load capacity: 250 kg
Height adjustment optionally:

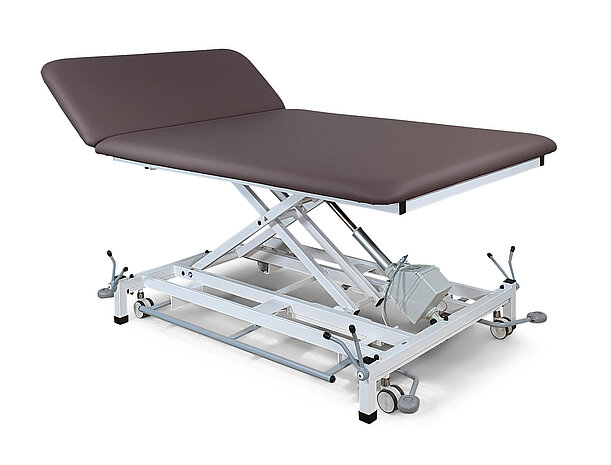

Upholstery colour: 64-707 chestnut
- Electronical height adjustment (480 mm – 920 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
Mandatory equipment:
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
- Manual foot operated height adjustment (500 mm – 920 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
1-sectioned:
- Length: 1950 mm, option: Head part
- Width depending on model: 1000 mm | 1100 mm | 1200 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
Foot switch rail, surround,
security adjustment
- 1 foot switch (low voltage) (art. no. 091E)
- 1 hand switch (low voltage) (art. no. 090E)
- Foot switch fixation at the underframe (art. no. 092E)
- Foot switch rail, lateral, on both sides of the table (art. no. 094E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered - Foot switch rail, surround (art. no. 095E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Head part, upwards and downwards
adjustable by gas spring
- Head part, upwards and downwards adjustable by gas spring (Art. no. 063)
Paper roll holder, mounted under head
part (not protruding), for width 1000 mm
- Paper roll holder, underneath lying surface, for width of lying surface 1000 mm (art. no. 016K)
