2-sectioned table for echocardiography
Model 2550-..XL / 2551-..XL

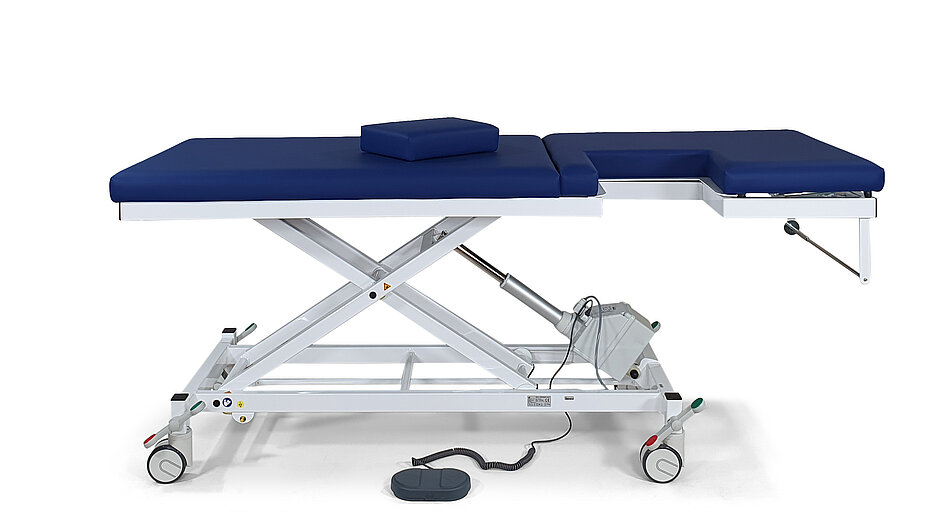

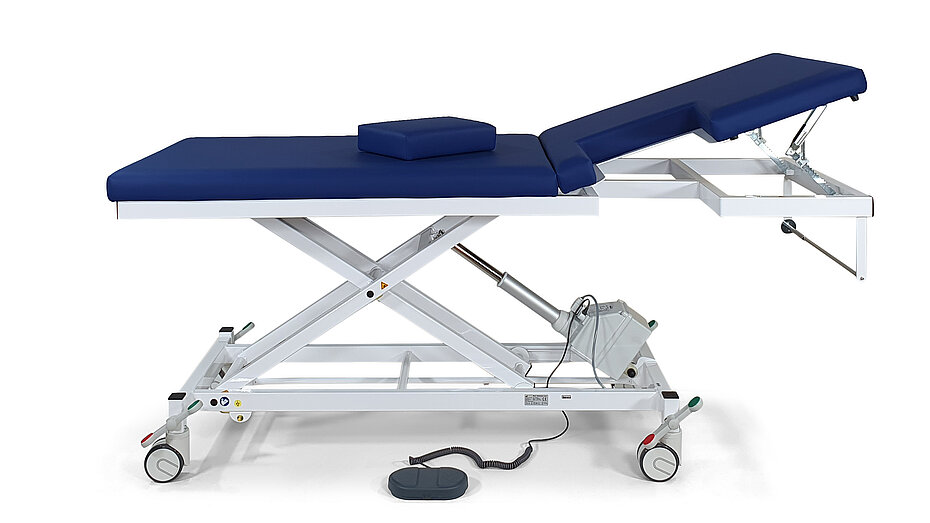

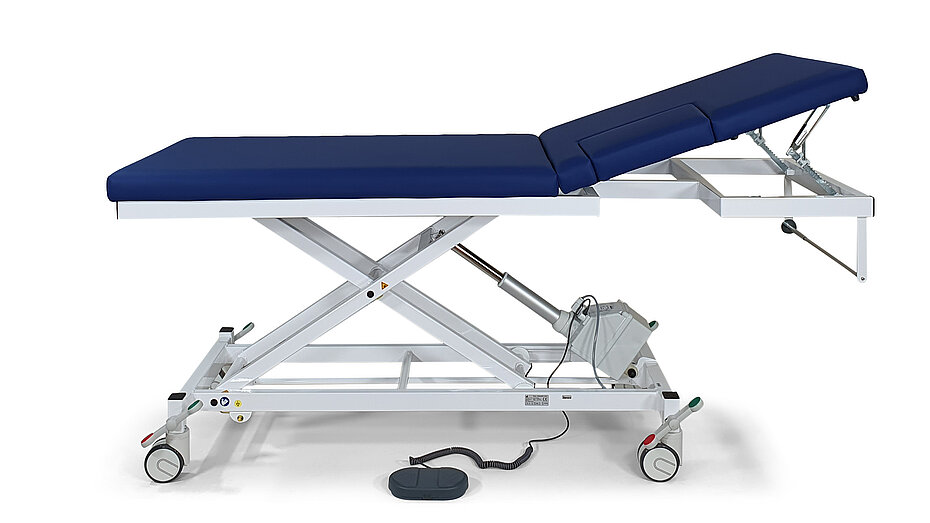

Model 2550-00XLE (upholstery colour 64-717 deep sea) with options:
Movable on twin castors with central lock (1180N), paper roll holder (1270K)
2550-00XLE and 2550-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2551-00XLE and 2551-00XL/H (width: 800 mm) white powder coated (RAL 9010)
2550-03XLE and 2550-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2551-03XLE and 2551-03XL/H (width: 800 mm) white aluminium powder coated (RAL 9006)
2550-04XLE and 2550-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
2551-04XLE and 2551-04XL/H (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned

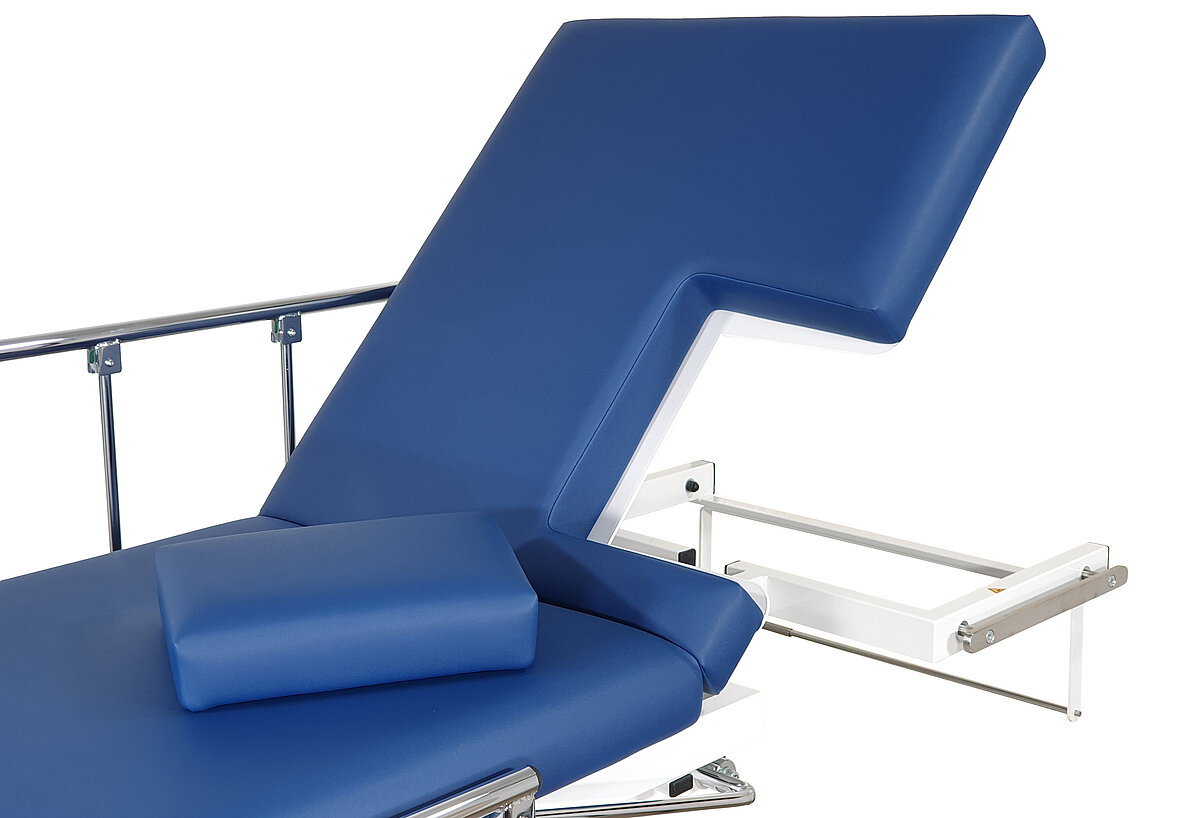

- Cut-out in the head part for echocardiography and upholstery part to close
- Table is not movable
- Height adjustment optionally by an electromotive drive or a hydraulic pump
Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment (Model 2550-..XLE, 2551-..XLE): 500 mm – 940 mm in 22 sec.
o Manual hydraulic height adjustment (Model 2550-..XL/H, 2551-..XL/H): 520 mm – 940 mm - Length overall: 1950 mm
- Width overall:
Model 2550-..XLE, 2550-..XL/H: 700 mm
Model 2551-..XLE, 2551-..XL/H: 800 mm - Load capacity: 250 kg (max. weight of patient)
Height adjustment optionally:

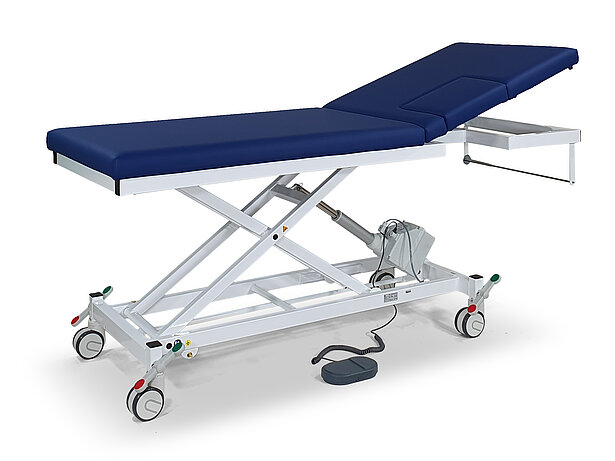

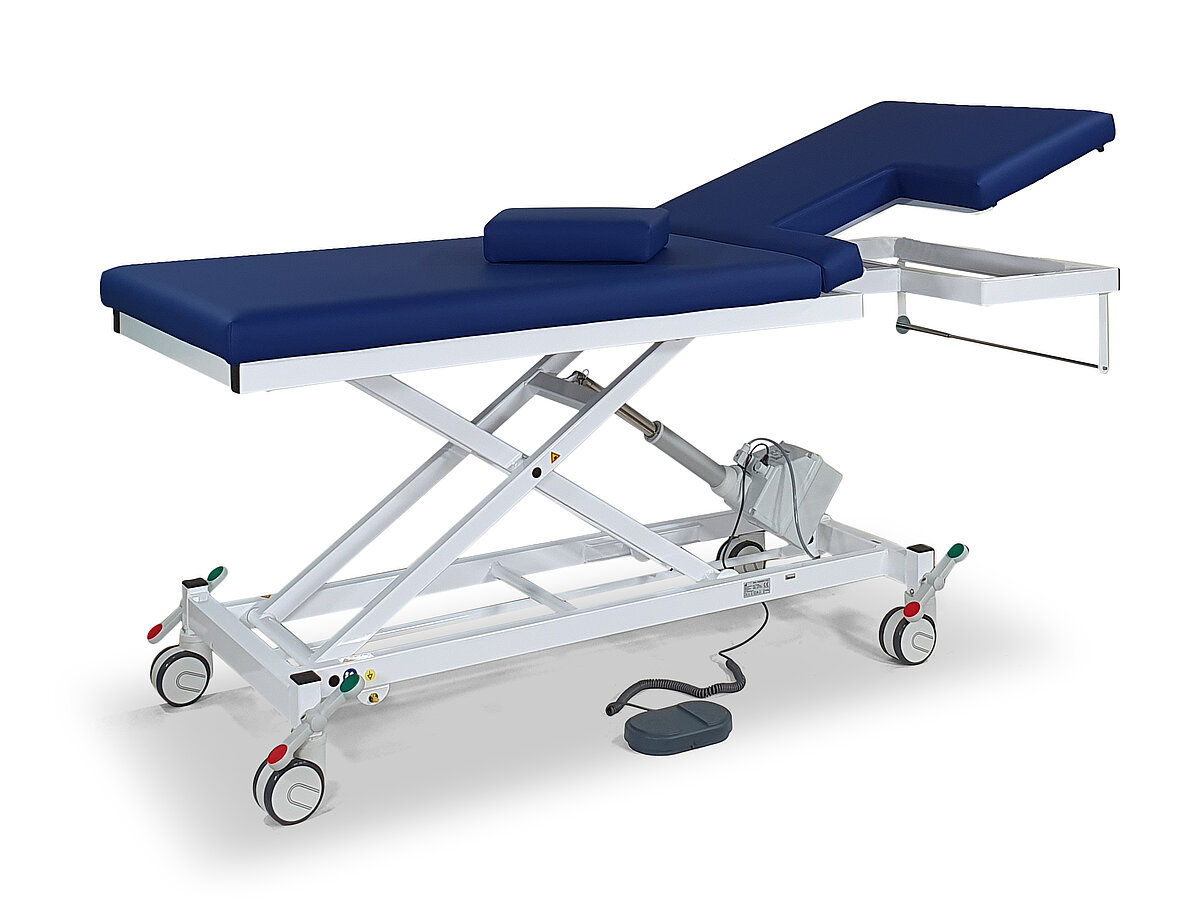

Model 2550-00XLE with options: Movable on twin castors with central lock (1180N), paper roll holder (1270K), without hand switch, foot switch;
upholstery colour: 64-717 deep sea
- Electronical height adjustment (500 mm – 940 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Plug connector for potential equalization in acc. to DIN 42801
- Constant adjustment speed even in case of high load
- Mandatory equipment:
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance

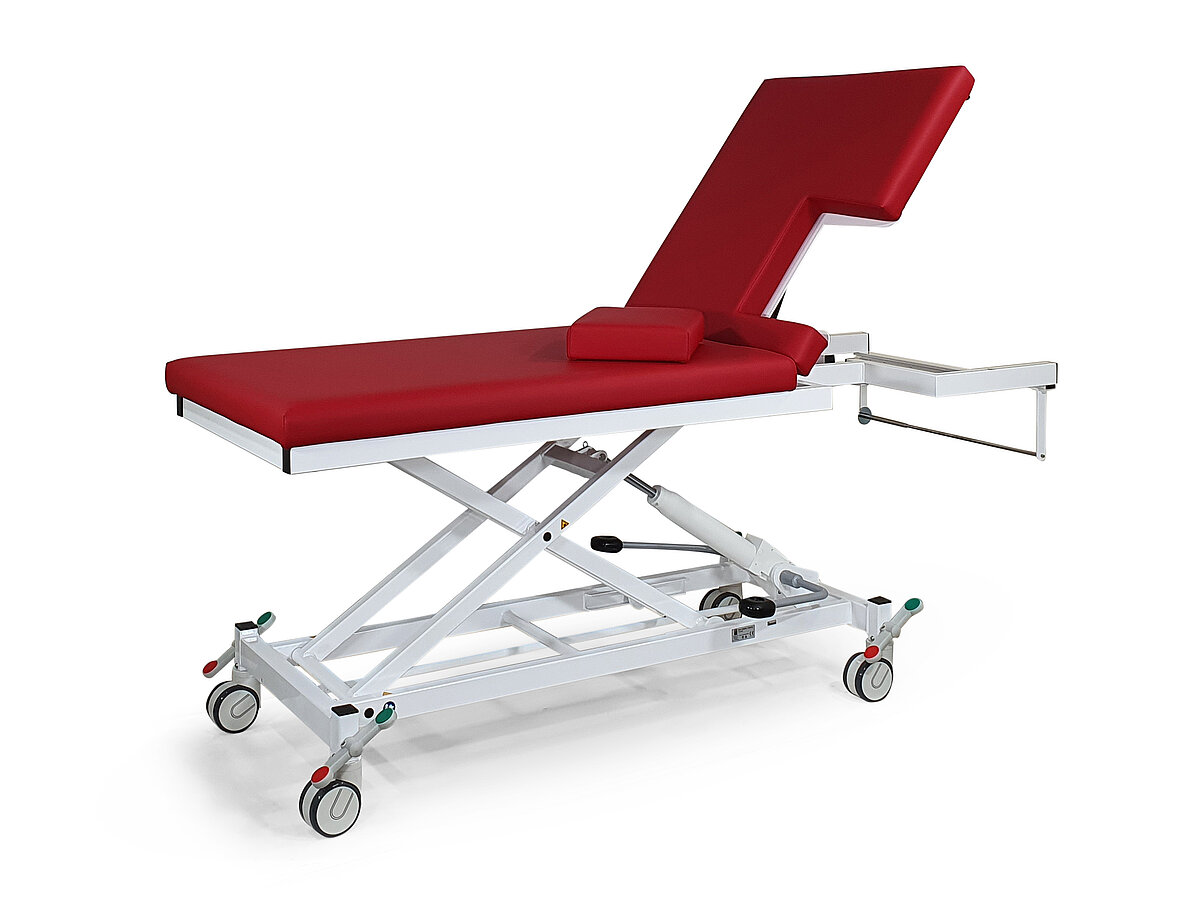

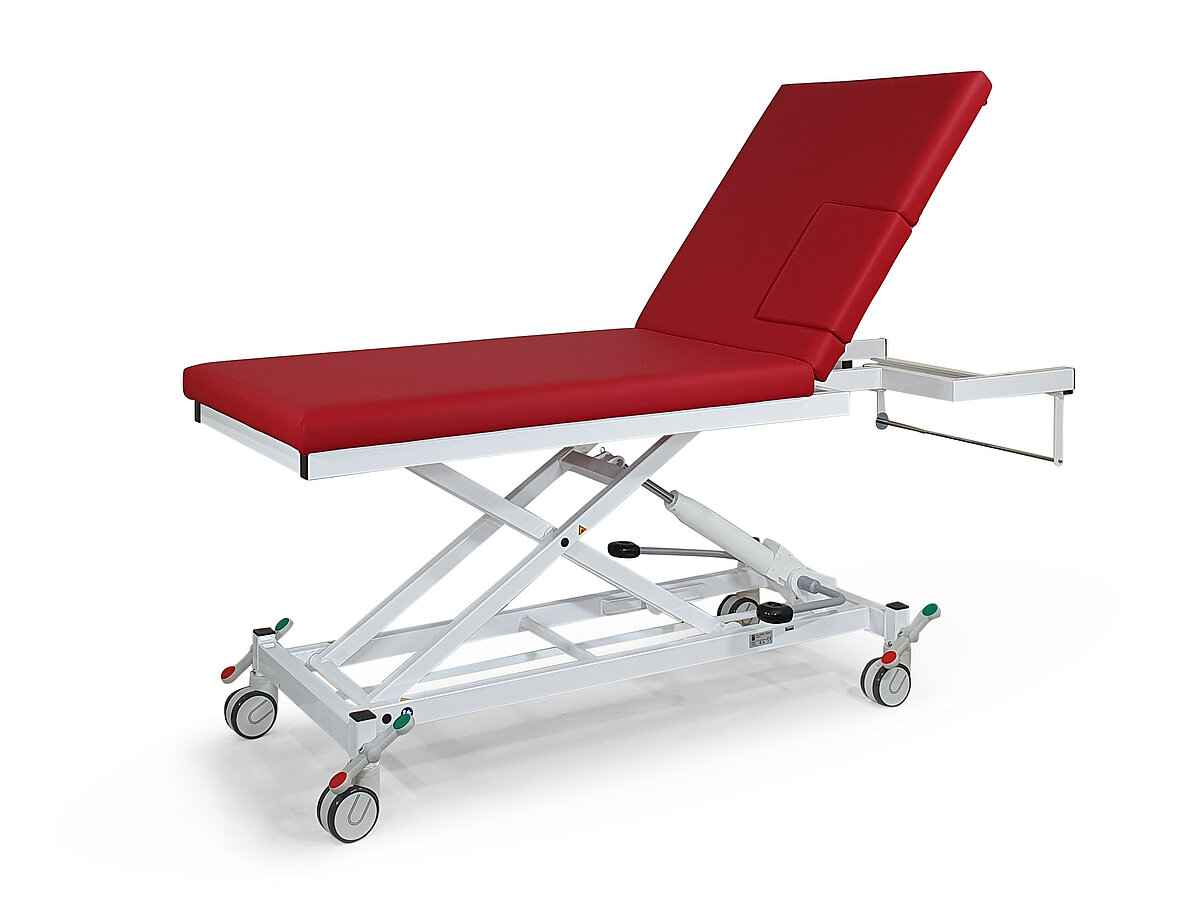

2550-00XL/H with options: Movable on twin castors with central lock (1180N);
upholstery colour: 64-708 cherry
- Manual foot operated height adjustment (520 mm – 940 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
upholstery colour: 64-156 royal
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an opened construction
- Load capacity: 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
2-sectioned:
- Head part upwards (+50°) stepless adjustable by gas spring
- Length head part: 800 mm
- Cut-out in the head: Length: 300 mm x Width: 250 mm

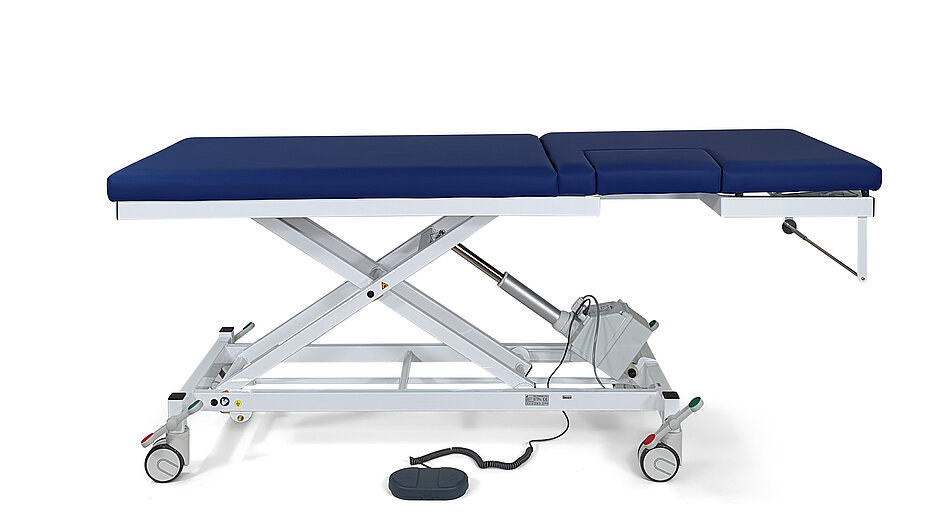

Place of cut-out left side, patient lying in supine position - Upholstery part to close the cut-out
- Foot part: fixed
- Length foot part: 1150 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 1120N-10)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered

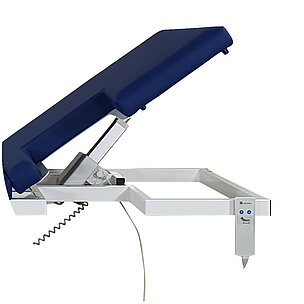

Electric motorized head part
adjustment to +60°
- Electric motorized head part adjustment to +60° (Art. no. 1665-10)

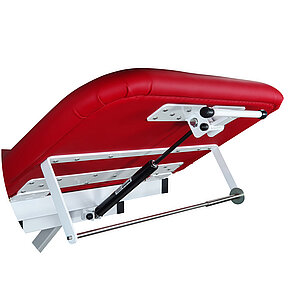

Paper roll holder, mounted under head
part (not protruding),
for width 700 mm / 800 mm
Paper roll holder, mounted at foot part
(protruding: 70 mm),
for width 700 mm / 800 mm
- Paper roll holder, mounted under head part, for width 700 mm / 800 mm (art. no. 1270K) / (art. no. 1280K)
- Paper roll holder, mounted at foot part, for width 700 mm / 800 mm (art. no. 1270F) / (art. no. 1280F)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. 1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)

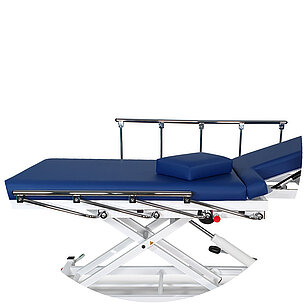

1 side guard lateral lowerable,
chromium-plated, completely made of steel
tube
1 side guard tiltable, chromium-plated,
completely made of steel tube, length:
700 mm
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- 1 side guard lateral lowerable (foldable), chromium-plated, completely made of steel tube, length: 1060 mm, length on cut-out side: 820 mm (Art. no. 1080-50)
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (Art. no. 1040)
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (Art. no. 1005)
1 wall protection bumper Ø 150 mm
- 1 wall protection bumper Ø 150 mm (Art. no. 1170)

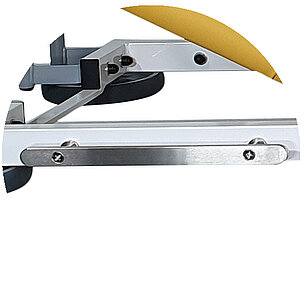

1 piece of side rail, length: 350 mm
Storage basket
- 1 piece of side rail, length: 350 mm (Art. no. 1410)
- Storage basket with mounting, measures: L. 530 x W. 370 x H. 80 mm (Art. no. 1850)
