Multipurpose examination table
Model 2648-..XLE

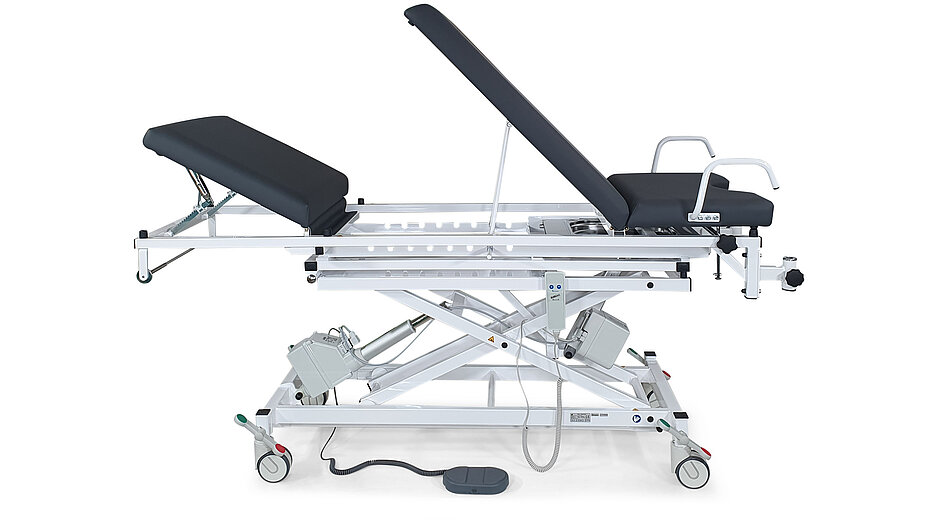

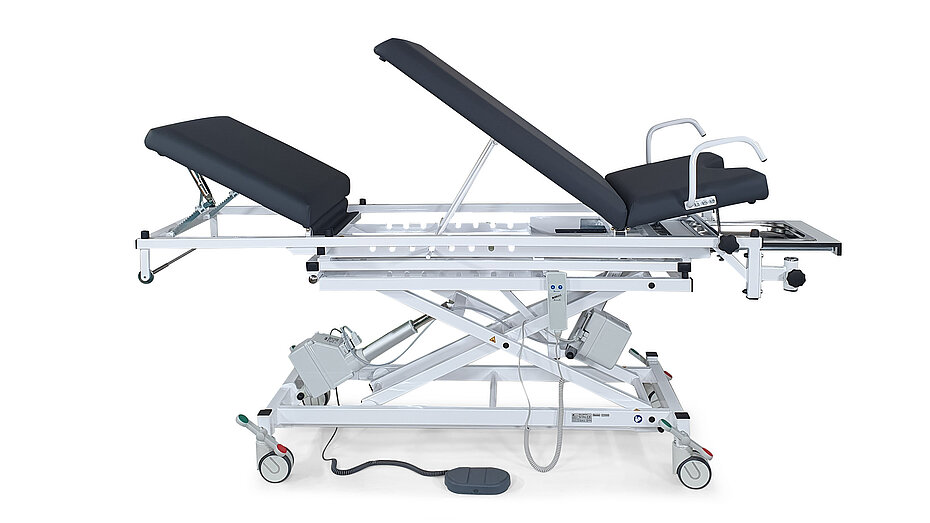

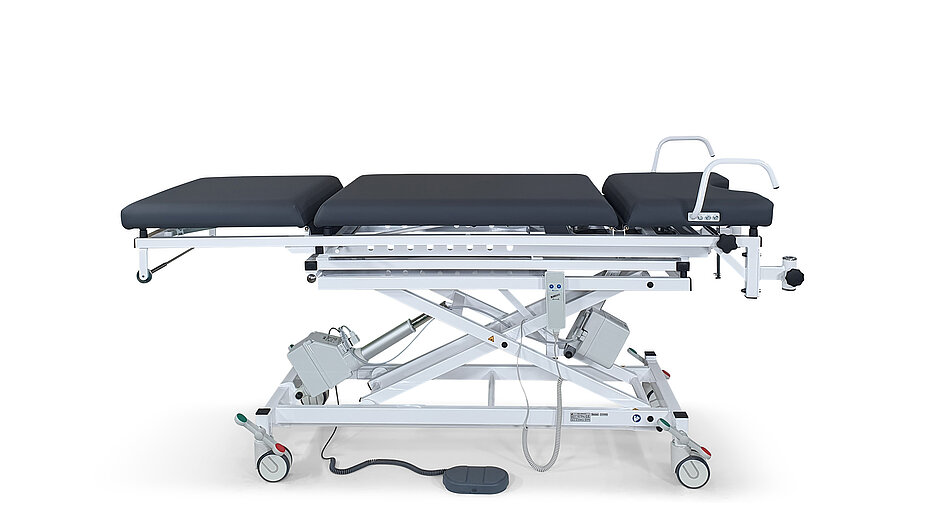

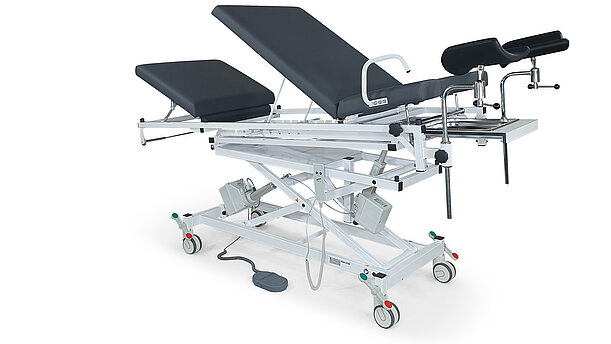

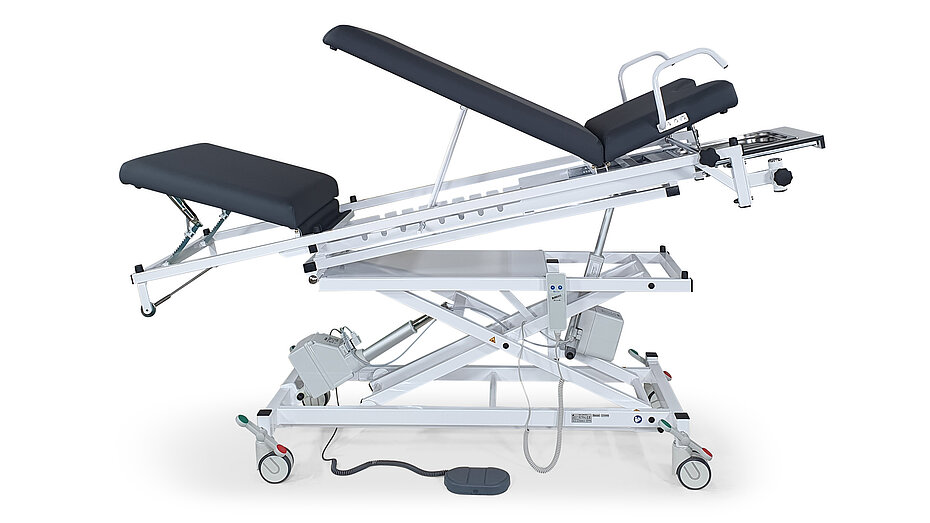

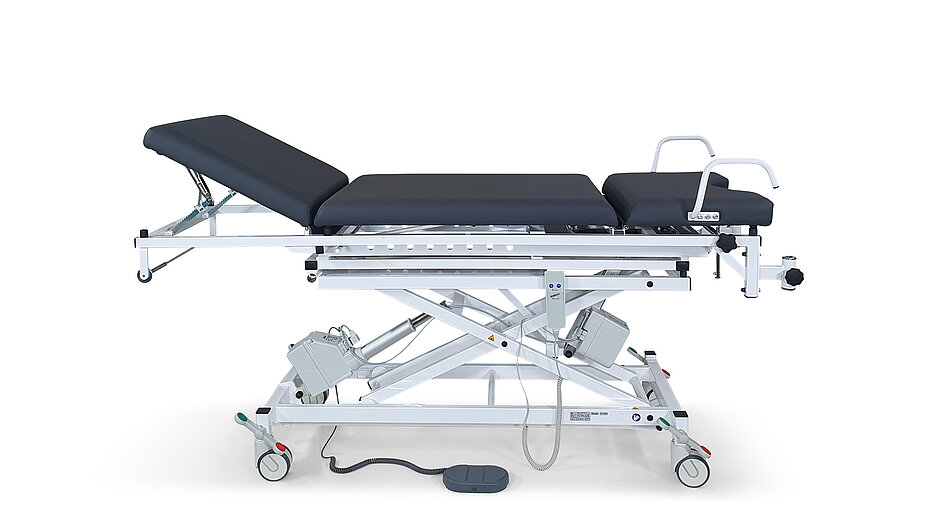

Model 2648-00XLE (upholstery colour 64-715 anthracite) with options:
Without standard mobility (1182), movable on twin castors with central lock (1180N), paper roll holder (1265K)
2648-00XLE white powder coated (RAL 9010)
2648-03XLE white aluminium powder coated (RAL 9006)
2648-04XLE grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Head part 30° positive adjustable, middle part 50° positive adjustable
- Seat section with half-round cutout, manually inclinable (20°)
- Lying surface electromotive inclinable to -15°
- Movable on comfort twin castors, each with lock
- Dewert-hygiene-equipment
Technical data:
- Electronical height adjustment:
630 mm – 1.070 mm in 22 sec. - Length overall: 1.980 mm
- Width overall: 650 mm
- Load capacity: 220 kg (max. weight of patient)
Electronical adjustment:
- Electronical height adjustment (650 mm – 1.090 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by foot switch (option: hand switch)
- Lying surface electromotive inclinable to -15° by hand switch
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Equipment and technology:
- Hand grips on both sides of the seat section

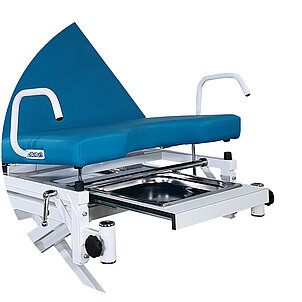

- Drawable basin (stainless steel) under seat, basin support: HPL panel
- Including clamps for leg holders (leg holders = available as an option)
Without standard mobility (1182), movable on twin castors with central lock (1180N), paper roll holder (1265K);
Upholstery colour 64-715 anthracite
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Moveable on comfort twin castors, each with lock, Ø 100 mm
- Easy hygiene because of an open construction
- Load capacity: 220 kg
Upholstery:
Lying surface:
3-sectioned:
- Head part 30° positive adjustable by 2 metal rachets, length head part: 550 mm
- Middle part 50° positive adjustable by rack system, length middle part: 930 mm
- Seat section with half-round cut-out, manually inclinable (20°), length seat section: 450 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Loss of standard mobility
Movable on twin castors, Ø 100 mm with
central lock, basic height +20 mm
- Loss of standard mobility (Movable on 4 comfrt twin castors, Ø 100 mm, each with lock) (Art. no. 1182)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (Art. no. 1180N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Head part stepless adjustable
by gas spring
Nose opening
Art. no. 1620
Upholstery part to close
- Head part stepless adjustable by gas spring from 0° to +60° (art. no. 1655)
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)

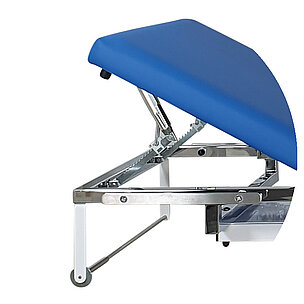

Paper roll holder, mounted under head part (not protruding)
- Paper roll holder, mounted under head part, for width of lying surface 700 mm (Art. no. 1265K)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. 1770)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
1 side guard tiltable, chromium-plated,
completely made of steel tube, length:
700 mm
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (art. no. 1005)

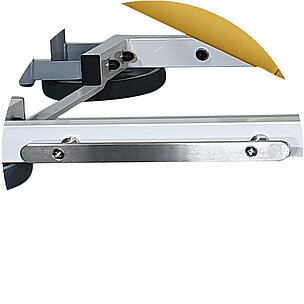

1 piece of side rail,
length: 350 mm
1 attachment clamp for
side rail, suitable for pipe:
Ø 18 mm
Infusion pole, without
attachment clamp
- Side rail, length: 350 mm (art. no. 1410)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. 1430)
- Infusion pole, without attachment clamp (art. no. 1450)

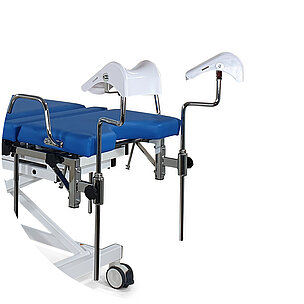

1 pair of leg supports

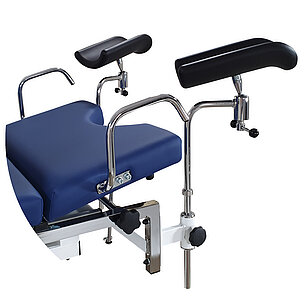

1 pair of leg supports according to Goepel
- 1 pair of leg supports (art. no. 1510)
- 1 pair of leg supports according to Goepel (art. no. 1520)
