Versatile table with electric motorized height adjustment
Model 1000-..E

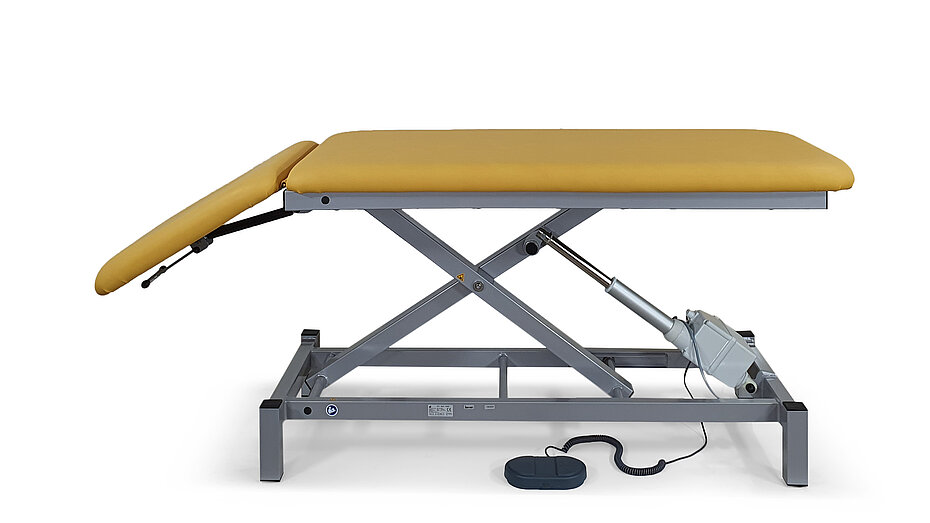

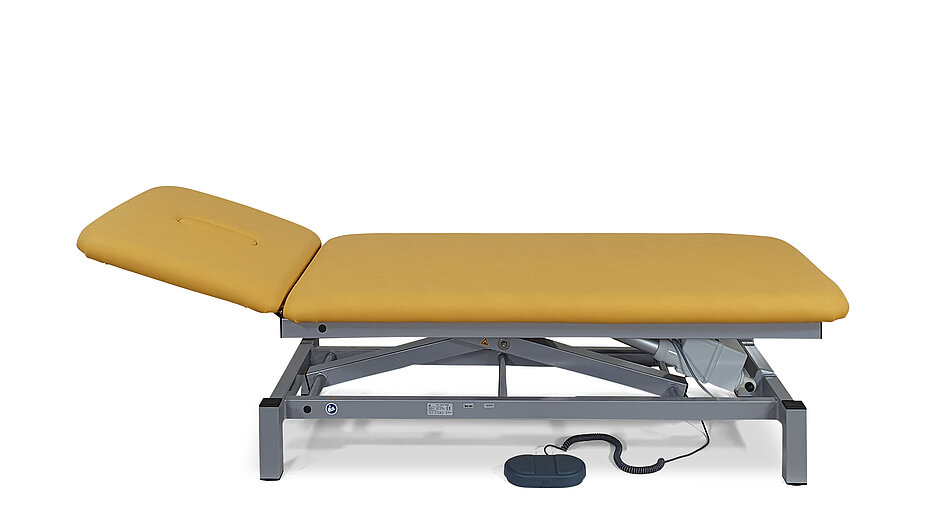

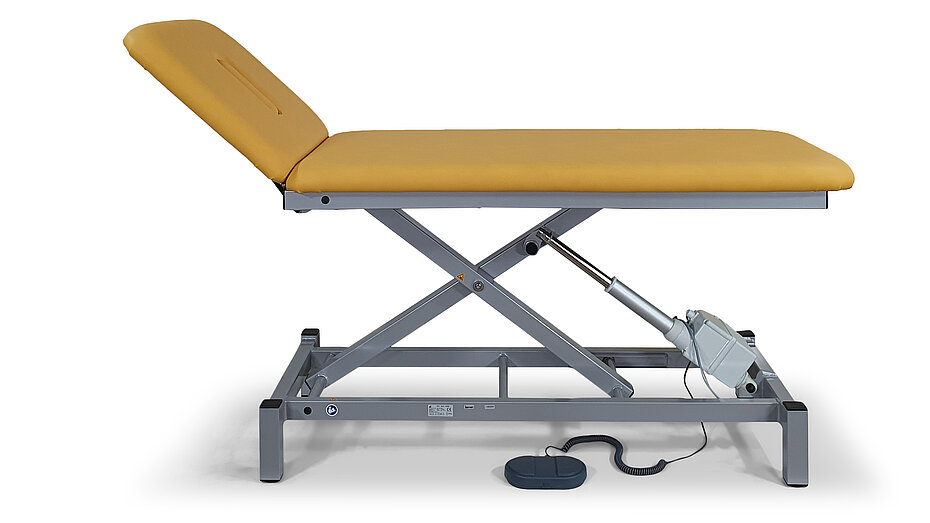

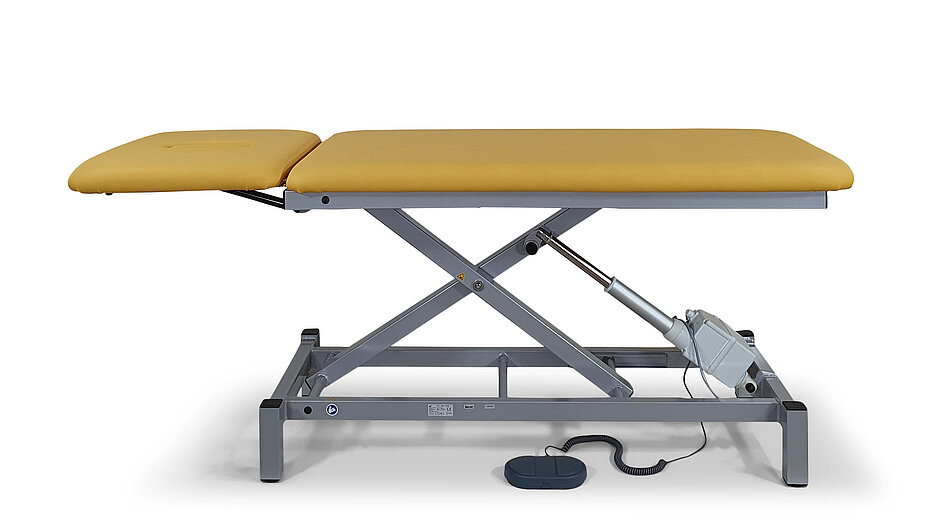

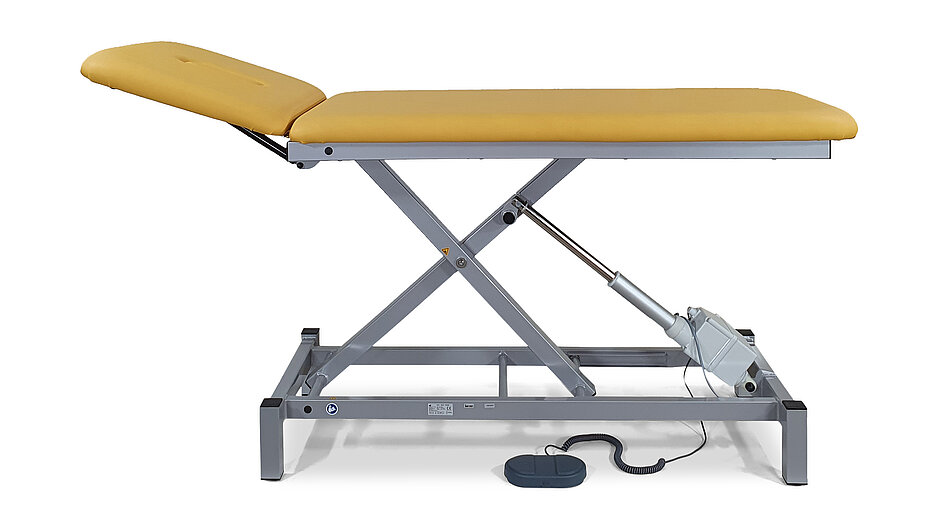

Table yellow: 1000-04E (upholstery colour 64-713 corn) without hand switch, foot switch

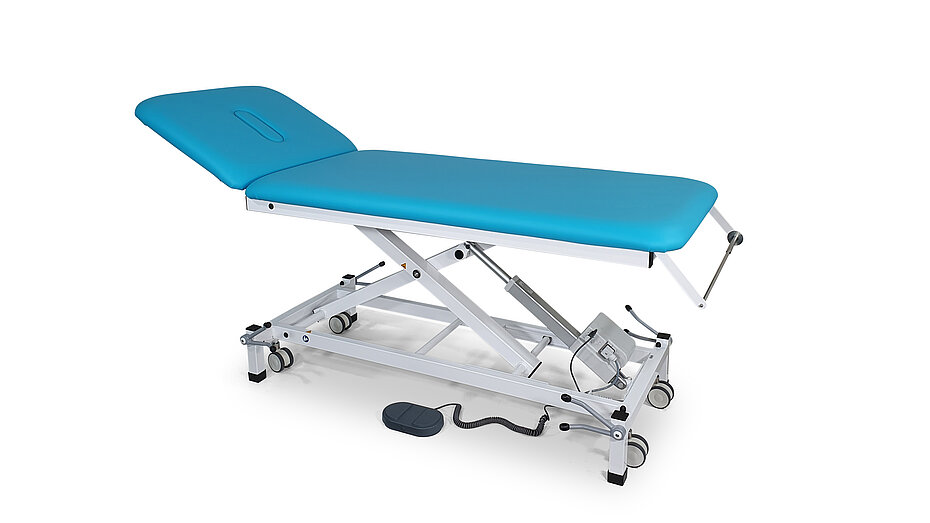

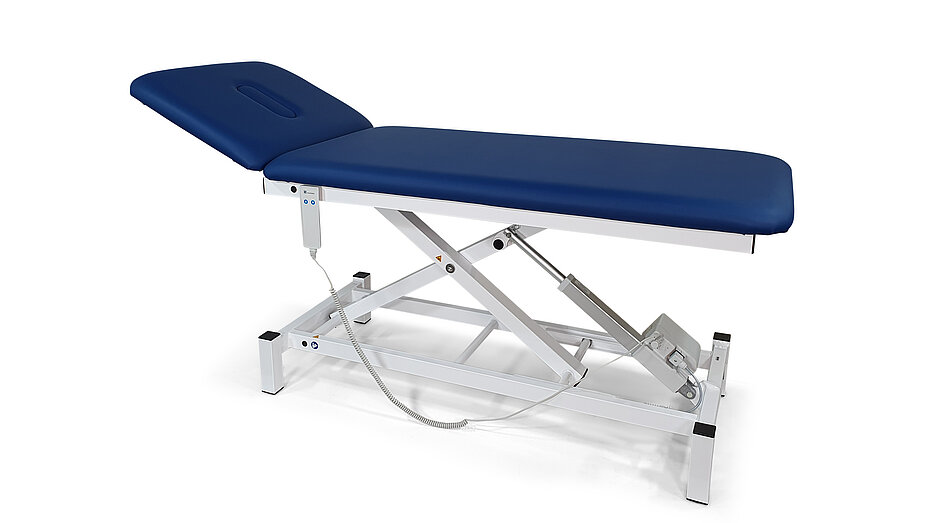

Table blue: 1000-00E (upholstery colour 64-717 deep sea) in basic equipment
Table turquoise: 1000-00E (upholstery colour 64-173 smaragd) with options:
Wheel-lifting/fixing mechanism (045N), paper roll holder (010F), without hand switch, foot switch
Model 1000-00E frame white powder coated (RAL 9010)
Model 1000-03E frame white aluminium powder coated (RAL 9006)
Model 1000-04E frame grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Table is not movable
- Lying surface: 2-sectioned
- Head part stepless up- (+ 40°) and downwards (-35°) adjustable by gas spring
- With integrated opening for nose and cushion to close
- Dewert-hygiene-equipment
Technical data:
- Electronical height adjustment:
480 to 920 mm in 22 sec. - Length overall: 1950 mm
- Width overall: 700 mm
- Load capacity: 225 kg
Electrical height adjustment:
- Electrical height adjustment from 480 to 920 mm by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
-
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Technology:

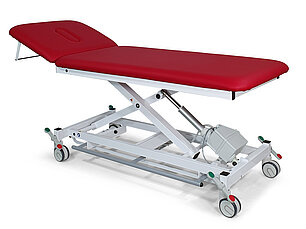

movable on twin castors with central lock (046), lateral foot switch rail (094E), paper roll holder (010K);
upholstery colour: 64-708 cherry
- Very stable single frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 225 kg
Upholstery
Lying surface:
2-sectioned:
- Head part stepless up- (+ 40°) and downwards (-35°) adjustable by gas spring
- Length head part: 550 mm, with integrated nose opening and cushion to close
- Foot part: fixed, length foot part: 1.400 mm
Upholstery:
- Thickness of upholstery: 65 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Optional: Polsterbezugsmaterial Skai Toronto EN mit staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 040N)
- Movable on twin castors, Ø100 mm with central lock, basic height + 20 mm (art. no. 046)
- Movable on comfort twin castors, Ø125 mm with central lock, basic height + 50 mm (art. no. B1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
with security adjustment
Foot switch rail, surround,
with security adjustment
- 1 foot switch (low voltage) (art. no. 091E)
- 1 hand switch (low voltage) (art. no. 090E)
- Foot switch fixation at the underframe (art. no. 092E)

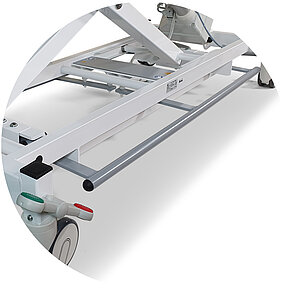

- Foot switch rail, lateral, on both sides of the table (art. no. 094E),
RAL 9006 powder coated

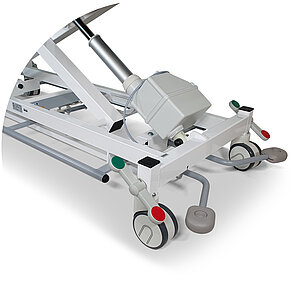

with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered - Foot switch rail, surround (art. no. 096E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Head part 3-sectioned
Loss of nose opening and upholstery
part to close

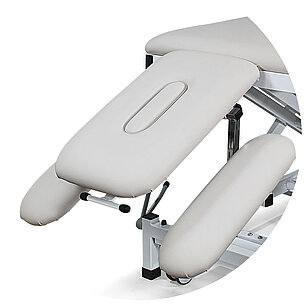

- Head part 3-sectioned including arm support, stepless adjustable and removable (art. no. 010K/015K not possible) (art. no. 056)
- Loss of nose opening and upholstery part to close (art. no. 1615-EF)

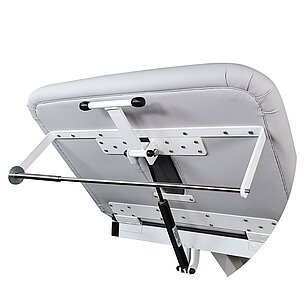

Paper roll holder, mounted under head
part (not protruding),
for width 700 mm / 800 mm
Paper roll holder, mounted at foot part
(protruding: 70 mm),
for width 700 mm / 800 mm
- Paper roll holder, mounted under head part, for width 700 mm / 800 mm (art. no. 010K) / (art. no. 015K)
- Paper roll holder, mounted at foot part, for width 700 mm / 800 mm (art. no. 010F) / (art. no. 015F)
- Width of lying surface: 800 mm (art. no. 006)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. B1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. B1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. B1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. B1782)

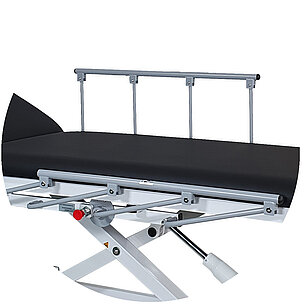

2 side guards foldable (lateral lowerable)
- 2 side guards lateral lowerable, RAL 9006 powder coated, made of steel tube, length: 820 mm, including upholstery medium-soft (art. no. 1008)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 4 wall protection bumpers Ø 150 mm, including mounting, for width 700 mm / 800 mm (art. no. B1175) / (art. no. B1176)
