Model 117-.. and 177-..

Table for echocardiography with fixed height

Model 117-.. and 177-..

Modell 117 / 177, Liege für Echokardiographie, ohne Höhenverstellung, Liegefläche 2-teilig

Modell 117 / 177, Liege für Echokardiographie, ohne Höhenverstellung, Liegefläche 2-teilig, mit Polstereinsatzteil

Modell 117 / 177, Liege für Echokardiographie, ohne Höhenverstellung, Liegefläche 2-teilig, KT flach

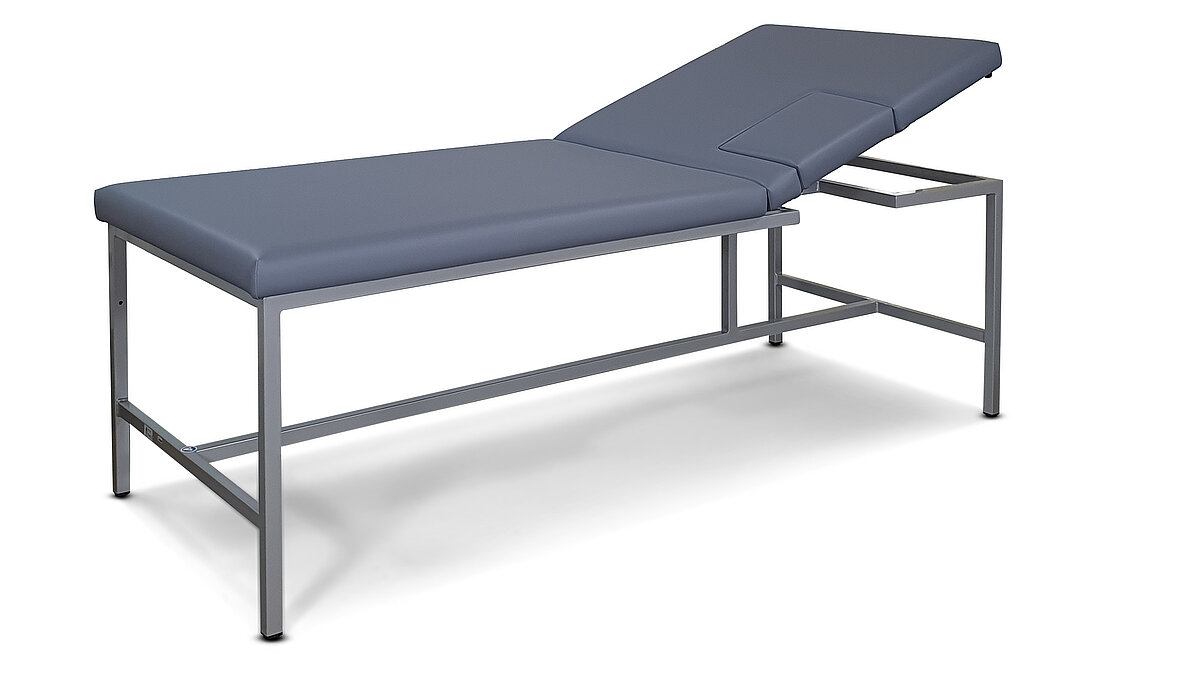

Model 117-04 (upholstery colour 64-153 platin) with special head part adjustment
Basic equipment: head part adjustment by gas spring!

Model 117-00 (width: 650 mm) white powder coated (RAL 9010)
Model 177-00 (width: 800 mm) white powder coated (RAL 9010)

Model 117-01 (width: 650 mm) chromium-plated
Model 177-01 (width: 800 mm) chromium-plated

Model 117-03 (width: 650 mm) white aluminium powder coated (RAL 9006)
Model 177-03 (width: 800 mm) white aluminium powder coated (RAL 9006)

Model 117-04 (width: 650 mm) grey aluminium powder coated (RAL 9007)
Model 177-04 (width: 800 mm) grey aluminium powder coated (RAL 9007)

From left to right: white (RAL 9010), white aluminium (RAL 9006), grey aluminium (RAL 9007)

For the configuration of your frame, you can choose from a range of different colours:
chromium-plated, white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*

^{*Due to technical reasons colour deviations of shown and origin colours are possible.}

Other colours possible on request.
Do not hesitate to contact us!

Pandoria Plus: From top left (white) to bottom right (fuchsie)
Toronto EN: From bottom right (stone blue) to top left (rosé)

We present our colour palette in two different qualities for the colour configuration of your upholstery:

Skai Toronto EN with staynu
and
Skai Pandoria Plus

Click here for colour selection

Information sheet model 117, 177 (pdf)

Basic equipment:

Lying surface: 2-sectioned
Cut-out in head part for echocardiography with upholstery part to close
Table is not movable
Dewert-hygiene-equipment

Technical data:

Length overall: 1950 mm
Width overall:
Model 117-..: 650 mm
Model 177-..: 800 mm
Height: 650 mm
Load capacity: 250 kg

Technology:

Frame construction made of square tube Ø 30 x 30 x 2 mm
With cross brace between the feet, longitudinal brace and central support for better stability
Table not movable, including height adjustment screws to compensate for uneven ground
Head part upwards (+55°) adjustable by gas spring
Galvanised steel hinges connect the upholstery parts
Frame welded as one unit (powder coated) or composed of two units (chromium-plated)

Upholstery:

Lying surface:

2-sectioned:

Head part upwards (+55°) adjustable by gas spring, length head part: 800 mm
Cut-out in head part with upholstery part to close
Length: 300 mm x Width: 250 mm
Cut-out on left side, patient lying in supine position
Foot part: fixed, length foot part: 1150 mm

Upholstery:

Thickness of upholstery: 80 mm
Upholstery base: Multiple glued, high-strength laminated wood panel
The padding is made of 2 different foam types: Both are pure foam in volume weight of 75
Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu

Upholstery covering:

Please choose between 2 different variants of leatherettes

Available as an option

Art. no. 1120-10
Movable on 4 castors,
Ø 100 mm, each with
total lock

Art. no. 1140-10
Movable on 4 castors,
Ø 125 mm, each with
total lock

Art. no. 1180N
Movable on twin castors,
Ø 100 mm with central lock
(not in case of chromium-
plated frame)

Art. no. 1185
Movable on twin castors,
Ø 125 mm with central lock
(not in case of chromium-plated
frame)

Movable on 4 castors, Ø 100 mm, each with lock (art. no. 1120-10)
Movable on 4 castors, Ø 125 mm, each with lock (art. no. 1140-11)
Movable on twin castors, Ø 100 mm, with central lock (art. no. 1180N)
Movable on comfort-twin castors, Ø 125 mm, with central lock (art. no. 1185)

Papierrollenhalter für Liegen mit fester Höhe - Serie DFH — Art. no. 1210 / 1220
Paper roll holder,
for width 650 mm / 800 mm

Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1210)
Paper roll holder for width 800 mm, width of paper: 690 mm (art. no. 1220)

Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)

Art. no. 1080-50
1 side guard lateral lowerable (foldable),
chromium-plated

Art. no. 1040
1 side guard tiltable, chromium-plated,
completely made of steel tube,
length: 700 mm

Art. no. 1005
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm

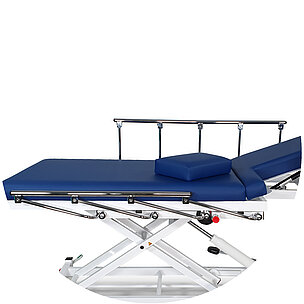

1 side guard foldable, chromium-plated, completely made of steel tube, length: 1060 mm, length on cut-out side: 820 mm (art. no. 1080-50)
1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (art. no. 1005)
1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
