Short table with variable length
Model 2010-..XL and 2011-..XL

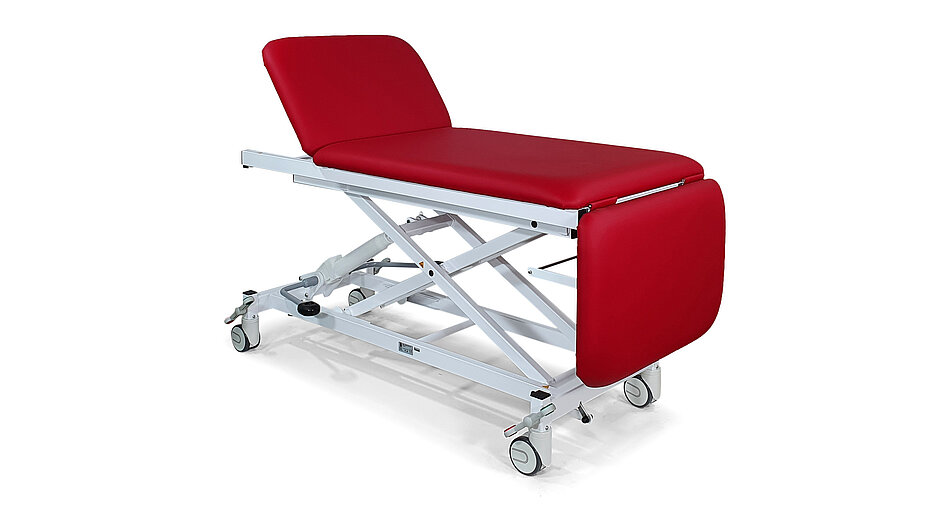

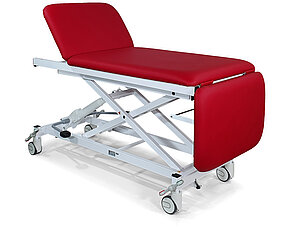

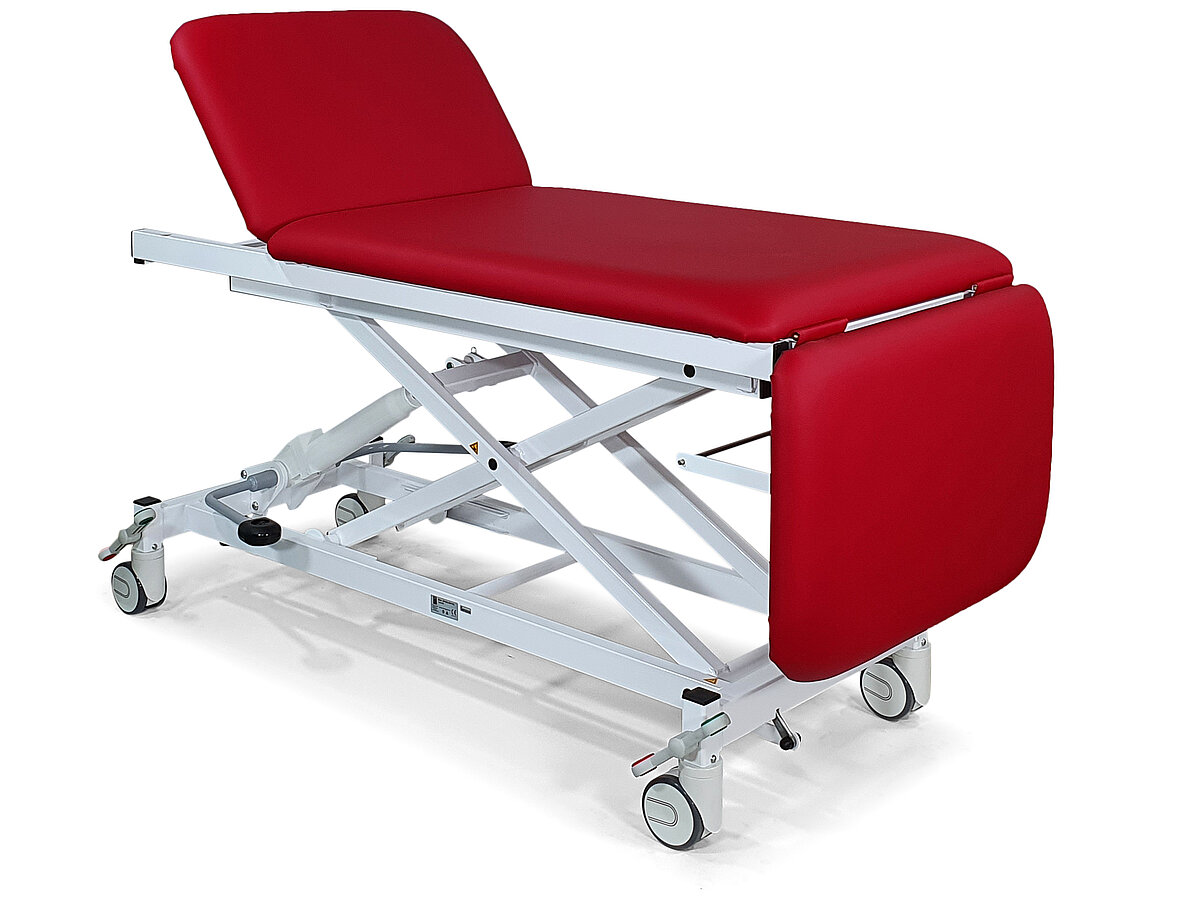

Picture red (cherry 64-708):
2010-00XL/H with options:
Movable on twin castors with central lock (1180N), paper roll holder (1270F)

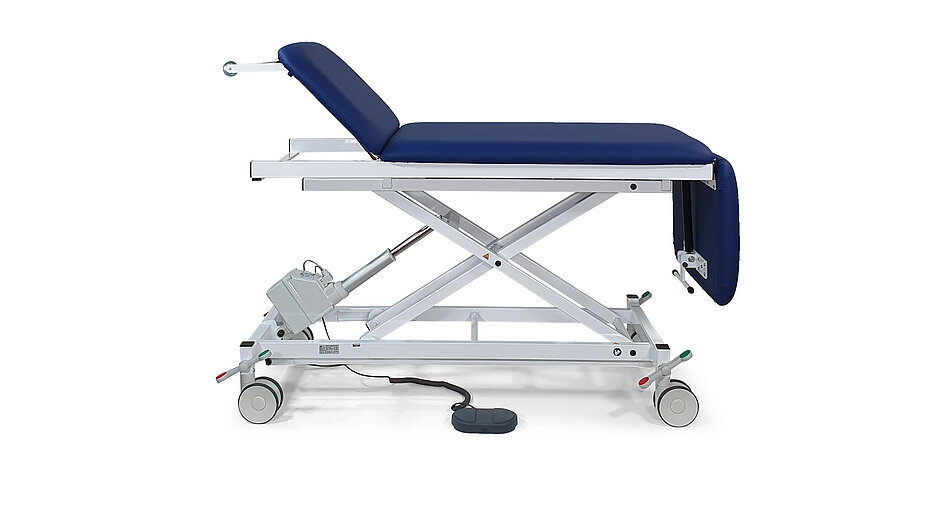

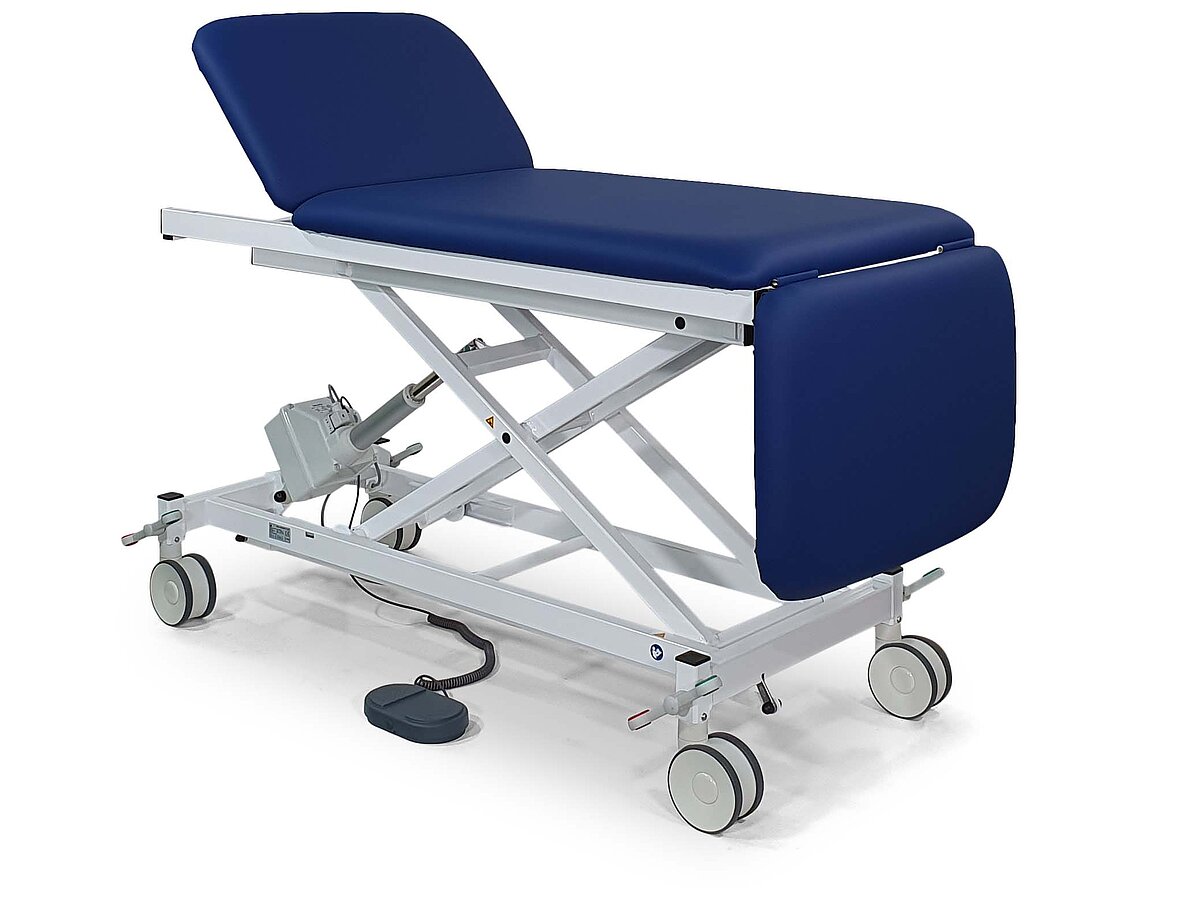

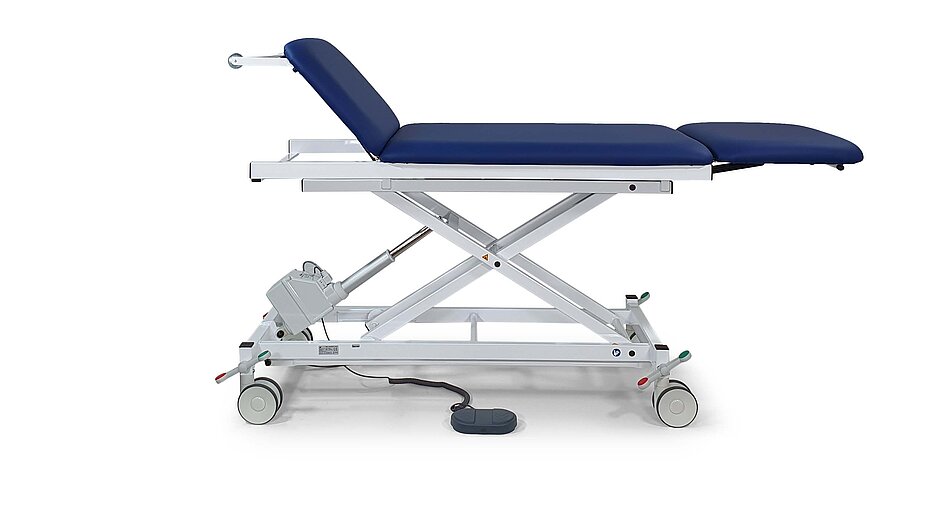

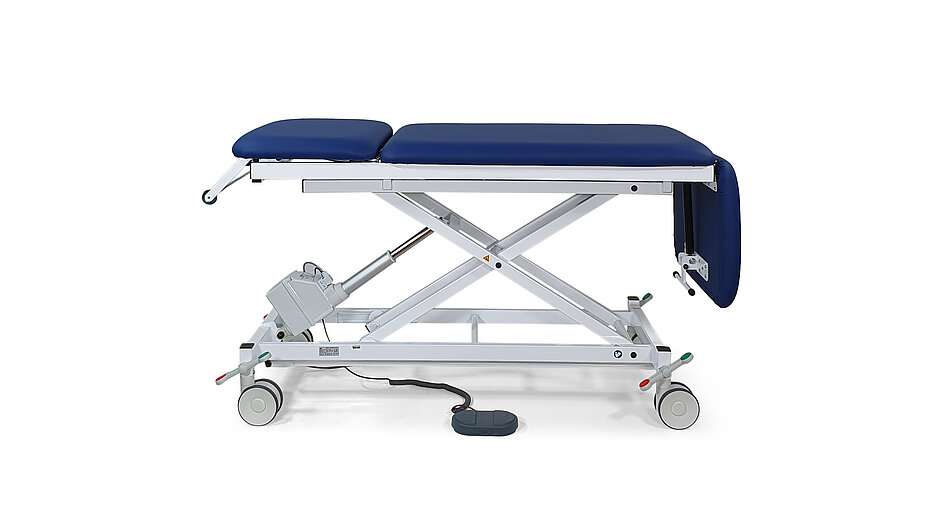

Picture blue (deep sea 64-717):
2010-00XLE with options:
Movable on comfort twin castors with central lock (1185), paper roll holder (1270K), loss of hand switch, foot switch
2010-00XLE and 2010-00XL/H (width: 700 mm) white powder coated (RAL 9010)
2011-00XLE and 2011-00XL/H (width: 800 mm) white powder coated (RAL 9010)
2010-03XLE and 2010-03XL/H (width: 700 mm) white aluminium powder coated (RAL 9006)
2011-03XLE and 2011-03XL/H (width: 800 mm) white aluminium powder coated (RAL 9006)
2010-04XLE and 2010-04XL/H (width: 700 mm) grey aluminium powder coated (RAL 9007)
2011-04XLE and 2011-04XL/H (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Foot part can be hinged vertical
- Head part upwards adjustable
- Table is not movable
- Height adjustment optionally by an electromotive drive or a hydraulic pump
- Dewert-hygiene-equipment
Technical data:
- Height adjustment:
o Electronical height adjustment
(Model 2010-..XLE, 2011-..XLE): 530 mm – 970 mm
o Manual hydraulic height adjustment
(Model 2010-..XL/H, 2011-..XL/H): 550 mm – 970 mm - Length overall: min. 1550 mm – max. 1950 mm
- Width overall:
Model 2010-..XLE, 2010-..XL/H: 700 mm
Model 2011-..XLE, 2011-..XL/H: 800 mm - Load capacity (foot part vertical downwards): 250 kg
Height adjustment optionally:
Movable on comfort twin castors with central lock (1185), paper roll holder (1270K), loss of hand switch, foot switch;
upholstery colour: 64-717 deep sea
- Electronical height adjustment (530 mm – 970 mm in 22 sec.) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
- Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):
- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Movable on twin castors with central lock (1180N), paper roll holder (1270F);
upholstery colour: 64-708 cherry
- Manual foot operated height adjustment (550 mm – 970 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Technology:
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable twin frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame because of use of roller bearings
- Widely-spaced feet and a high dead weight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity (foot part vertical downwards): 250 kg, tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
3-sectioned:
- Head part stepless adjustable by gas spring (0° - +60°)
- Length head part: 450 mm
- Middle part: fixed
- Length middle part: 1050 mm
- Foot part stepless up- (+30°) and downwards (-90°) adjustable by gas spring
- Length foot part: 450 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types:
Both are pure foam in volume weight of 45 and 75 - Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Hinge lid made of identical upholstery covering
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 1120N-10)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Nose opening, in head part
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)

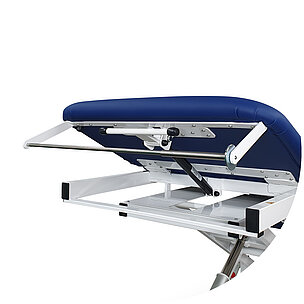

Paper roll holder, mounted under head
part (70 mm protruding),
for width 700 mm / 800 mm
Paper roll holder, mounted at foot
part (not protruding),
for width 700 mm / 800 mm
- Paper roll holder, mounted under head part (70 mm protruding), for width 700 mm / 800 mm (art. no. 1270F/K / 1280F/K)
- Paper roll holder, mounted at foot part (not protruding), for width 700 mm / 800 mm (Art. no. 1270K/F / 1280K/F)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. 1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
1 side guard foldable, chromium-plated,
completely made of steel tube,
length: 820 mm
- 1 side guard lateral lowerable, chromium-plated, completely made of steel tube, length: 820 mm (art. no. 1080-60)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 4 wall protection bumpers Ø 150 mm with mounting, width: 700 mm / 800 mm (Art. no. 1175) / (Art. no. 1176)
