Versatile table with electric motorized height adjustment
Model 4000-..E and 4001-..E
Height adjustment with large adjustment range
is effected by a a high-performance freewheeling electric motor with high adjustment speed which corresponds to the newest advice of BfArM.

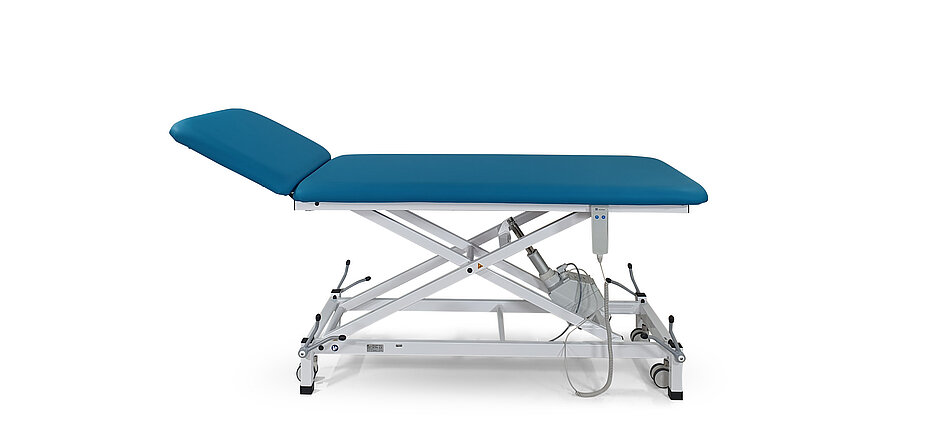

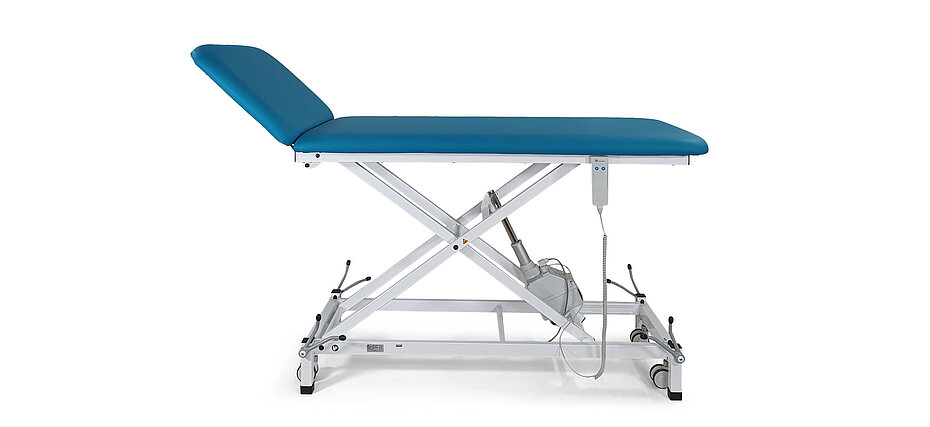

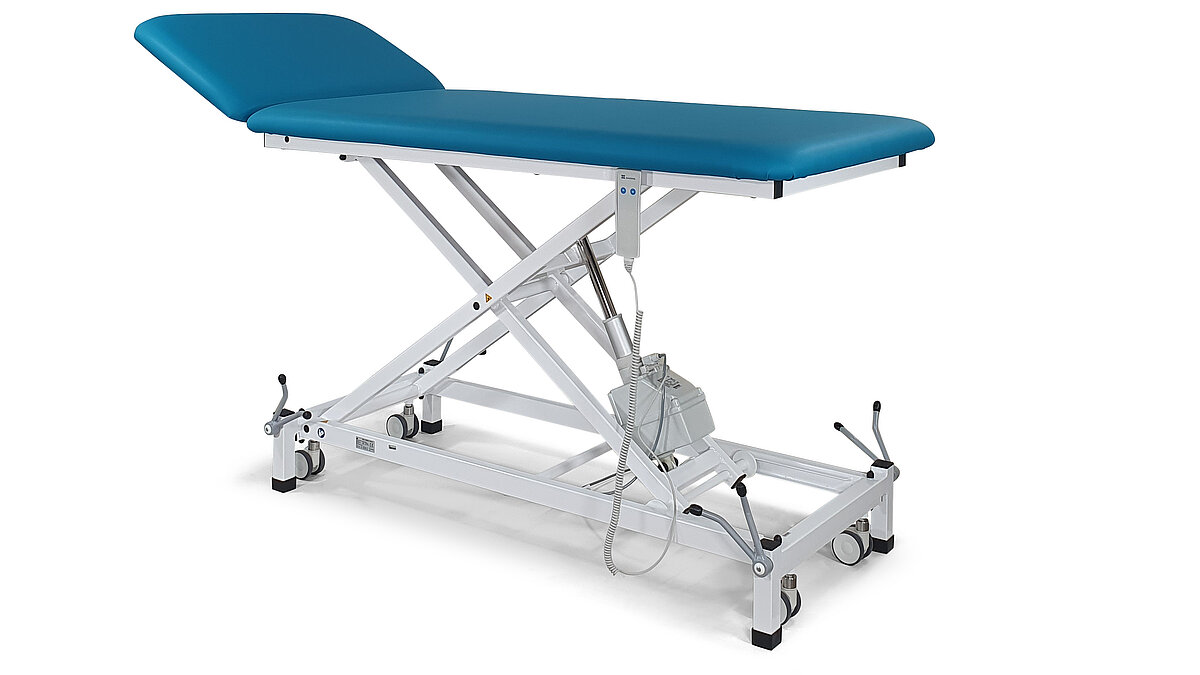

4001-00E (upholstery colour 64-173 smaragd) with options:
Wheel-lifting/fixing mechanism (1045N)
4000-00E (width: 700 mm) white powder coated (RAL 9010)
4001-00E (width: 800 mm) white powder coated (RAL 9010)
4000-03E (width: 700 mm) white aluminium powder coated (RAL 9006)
4001-03E (width: 800 mm) white aluminium powder coated (RAL 9006)
4000-04E (width: 700 mm) grey aluminium powder coated (RAL 9007)
4001-04E (width: 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Table is not movable
- Height adjustment by electromotive drive
- Dewert-hygiene-equipment
Technical data:

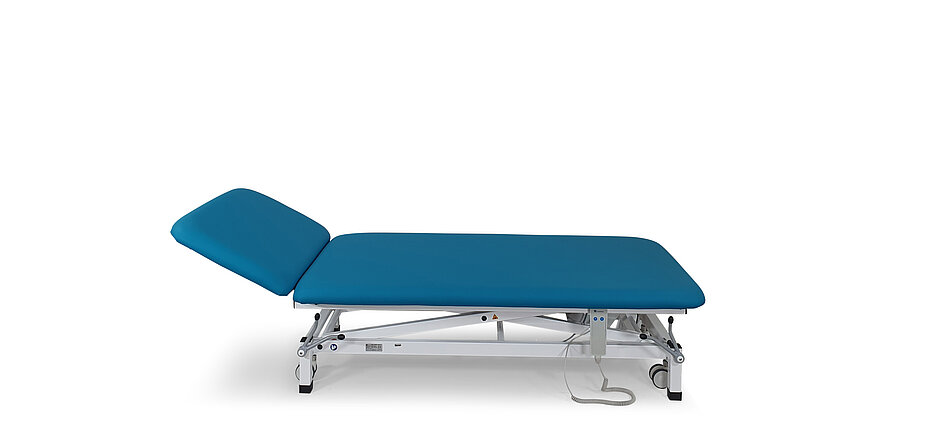

- Electronical height adjustment: 420 - 970 mm in 18 sec.
- Length overall: 2000 mm
- Width overall:
Model 2000-..XLE: 700 mm
Model 2001-..XLE: 800 mm - Load capacity: 250 kg (max. weight of patient)
Electronical height adjustment:
- Electronical height adjustment (420 mm - 970 mm) by AC-motor with a pressure capacity of 10000 N
- Electromotive drive control by hand switch (option: foot switch)
- Constant adjustment speed even in case of high load
-
Mandatory equipment:
Integrated safety devices (according to the newest advice of Federal Institute for Drugs and Medical Devices (BfArM)):- Activation of drive by a double tip, automatic block in case of no use
- Active freewheeling downwards, automatic declutch in case of resistance
Technology:
upholstery colour: 64-173 smaragd
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable double frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Abrasion resistant guide system at under and upper frame due to use of roller bearings
- Widely-spaced feet and a high deadweight guarantee stability
- Table not movable, including height adjustment screws to compensate for uneven ground
- Easy hygiene because of an open construction
- Load capacity: 250 kg
- Tested with fourfold static load (1000 kg)
Upholstery:
Lying surface:
2-sectioned:

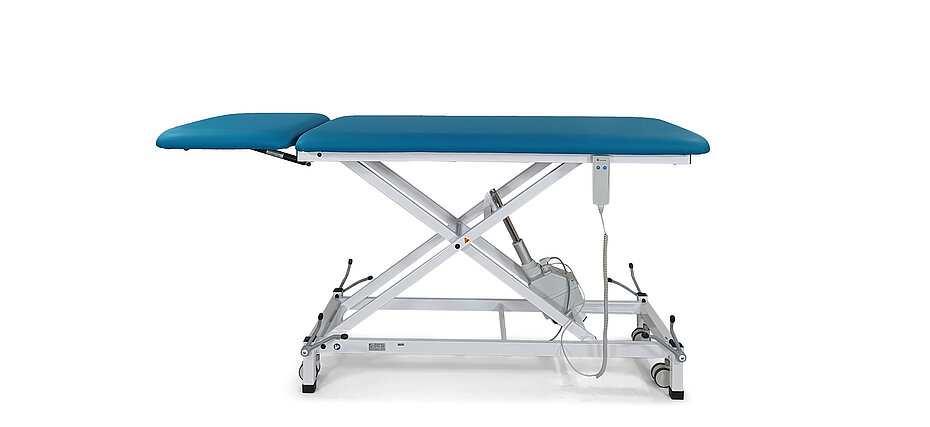

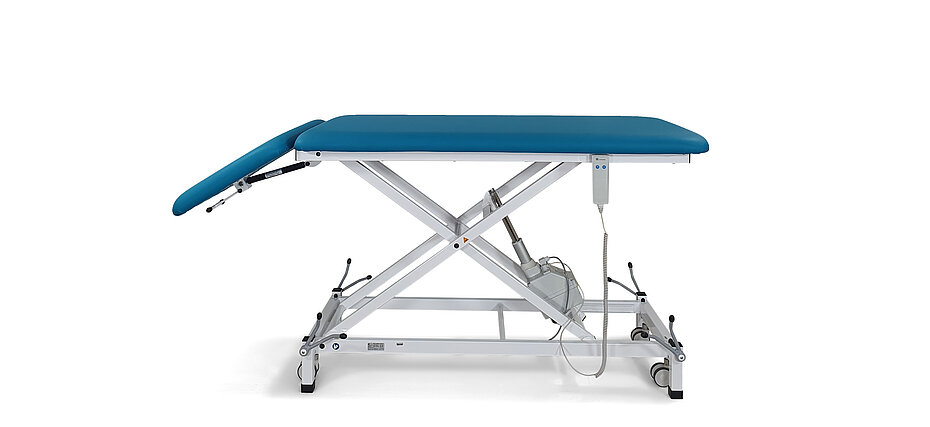

- Head part stepless up- (+ 45°) and downwards (-35°) adjustable by gas spring, length head part: 500 mm
- Foot part: fixed, length foot part: 1.500 mm
Upholstery:
- Thickness of upholstery: 60 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Hinge lid made of identical upholstery covering
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on comfort twin
castors Ø 100 mm,
each with total lock,
basic height -15 mm
Movable on twin castors,
Ø 100 mm with central
lock, basic height +20 mm
Movable on comfort twin
castors, Ø 125 mm with
central lock,
basic height + 50 mm
Wheel-lifting/fixing mechanism
with 4 foot levers for controlled
lowering
- Movable on comfort twin castors Ø 100 mm, each with total lock, basic height - 15 mm (art. no. 1120N-10)
- Movable on twin castors, Ø 100 mm with central lock, basic height + 20 mm (art. no. 1180N)
- Movable on comfort twin castors, Ø 125 mm with central lock, basic height + 50 mm (art. no. 1185)
- Wheel-lifting/fixing mechanism
Combination of firm stand on the table's feet and mobility on twin castors Ø 75 mm,
4 foot levers with 2 ergonomic holders enable a foot operated, low-noise lowering on the feet or lifting on castors.
Unsuitable for patient transport. (art. no. 1045N)
1 foot switch (low voltage)
1 hand switch (low voltage),
with magnet on the back to fasten
1 foot switch fixation mounted at
underframe
Foot switch rail, lateral, on both sides,
security adjustment
Foot switch rail, surround,
security adjustment
- 1 foot switch (low voltage) (art. no. 1910E)
- 1 hand switch (low voltage) (art. no. 1920E)
- Foot switch fixation at the underframe (art. no. 1940E)
- Foot switch rail, lateral, on both sides of the table (art. no. 1950E),
RAL 9006 powder coated
with security adjustment: Press the switch rail down = the table is lifted; Lift the switch rail up = the table is lowered
Nose opening, in head part
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder, mounted under head
part (not protruding),
for width 700 mm / 800 mm
Paper roll holder, mounted at foot part
(protruding: 70 mm),
for width 700 mm / 800 mm
- Paper roll holder, mounted under head part, for width 700 mm (art. no. 1270K) / (art. no. 1280K)
- Paper roll holder, mounted at foot part, for width 700 mm (art. no. 1270F) / (art. no. 1280F)
- Soft covering for pleasant resting comfort, for width 700 mm, thickness 80 mm (art. no. 1770)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 700 mm, thickness 70 mm (art. no. 1772)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
1 side guard lateral lowerable (foldable), chromium-plated
- 1 side guard lateral lowerable, chromium-plated, completely made of steel tube, length: 1060 mm (art. no. 1080)
4 wall protection bumpers Ø 150 mm,
including mounting,
for width 700 mm / 800 mm
- 4 wall protection bumpers Ø 150 mm with mounting, width: 700 mm / 800 mm (Art. no. 1175) / (Art. no. 1176)
