Table with fixed height made of round tube
Model 106-.. and 107-..

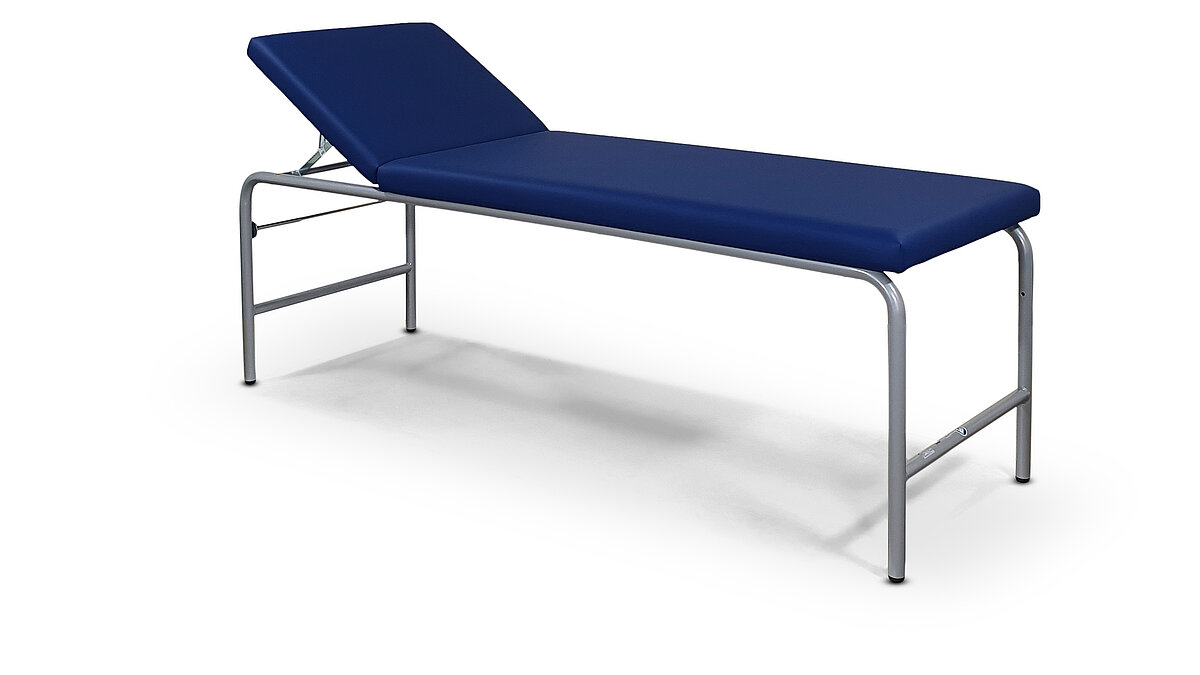

Model 106-04 (upholstery colour 64-717 deep sea) with option: Paper roll holder (1210)
Model 106-00 (width 650 mm) white powder coated (RAL 9010)
Model 107-00 (width800 mm) white powder coated (RAL 9010)
Model 106-01 (width 650 mm) chromium-plated
Model 107-01 (width 800 mm) chromium-plated
Model 106-03 (width 650 mm) white aluminium powder coated (RAL 9006)
Model 107-03 (width 800 mm) white aluminium powder coated (RAL 9006)
Modell 106-04 (width 650 mm) grey aluminium powder coated (RAL 9007)
Modell 107-04 (width 800 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
chromium-plated, white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Frame madeof round tube
- Table is not movable
- Head part positive adjustable
- Possibility to pin on a paper roll holder on head side and foot side
- Dewert-hygiene-equipment
Technical data:
- Length overall: 1.950 mm
- Width overall:
Model 106-..: 650 mm
Model 107-..: 800 mm - Height: 650 mm
- Load capacity: 250 kg
Technology:
upholstery colour: 64-717 deep sea

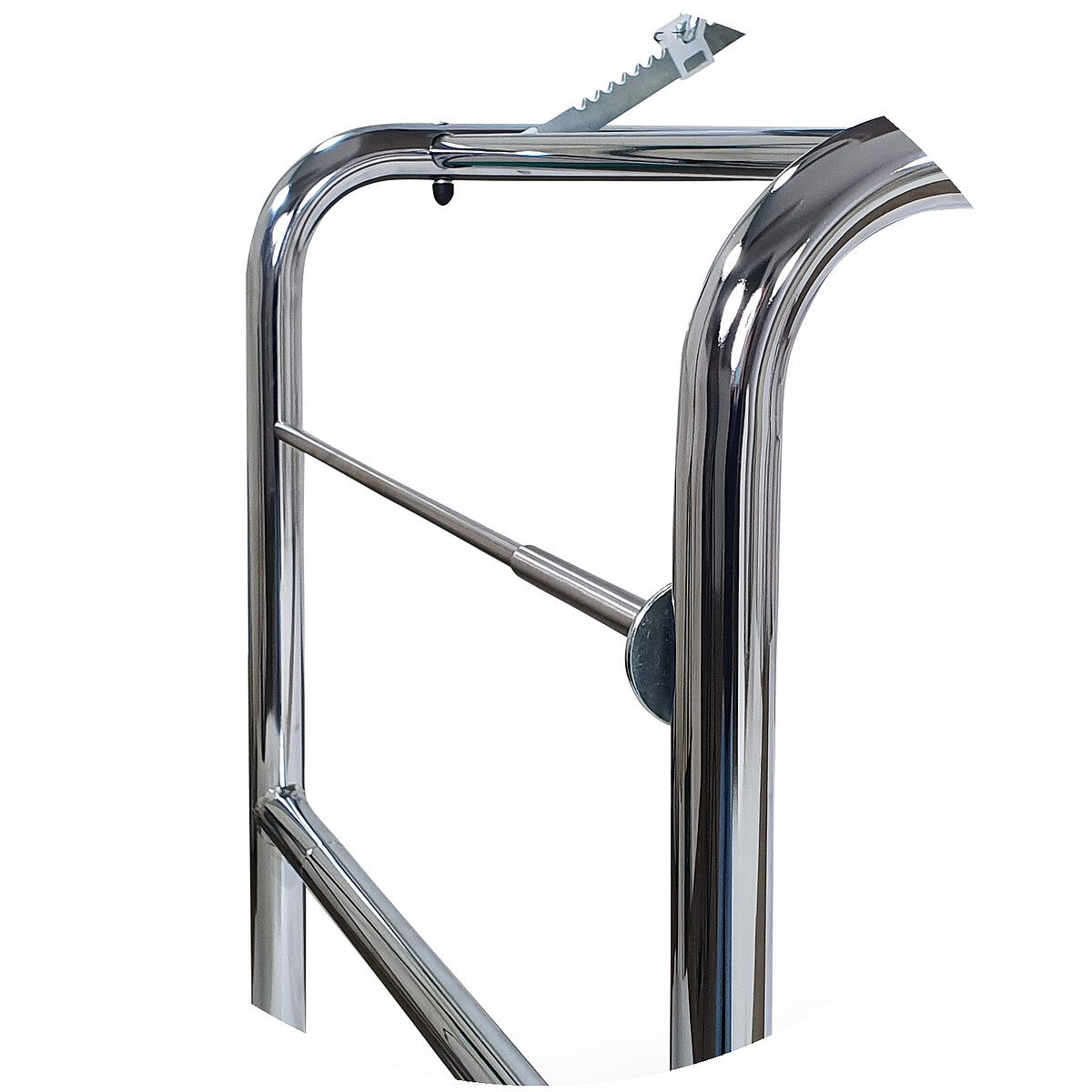

- Frame construction made of round tube 32 x 2 mm
- With cross brace for better stability between the feet
- Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility (longitudinal brace necessary) - Two stable parallel mounted safety metal rachets for positive adjustment of head part
- Galvanised steel hinges connect the upholstery parts
- Pairs of feet and frame are screwed together tightly
Upholstery:
Lying surface:
2-sectioned:
- Head part upwards (+30°) adjustable by 2 metal rachets, length head part: 550 mm
- Foot part: fixed, length foot part: 1400 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Hinge lid made of identical upholstery covering
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Movable on 4 castors,
Ø 100 mm, each with
total lock
Movable on 4 castors,
Ø 125 mm, each with
total lock
- Movable on 4 castors, Ø 100 mm, each with lock (art. no. 1120-10)
- Movable on 4 castors, Ø 125 mm, each with lock (art. no. 1140-11)
Longitudinal brace for
additional stability,
necessary in case of
mobility
- Longitudinal brace for additional stability, necessary in case of mobility (art. no. 1310)
Head part stepless adjustable
by gas spring (0° to +55°)
Additional second head
part of the same size,
adjustable by 2 metal
rachets
Nose opening
Art. no. 1620
Upholstery part to close
- Head part stepless adjustable by gas spring (art. no. 1655-20)
- Additional second head part of the same size, adjustable by 2 metal rachets (art. no. 1662)
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder,
for width 650 mm / 800 mm
- Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1210)
- Paper roll holder for width 800 mm, width of paper: 690 mm (art. no. 1220)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
- Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
- Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)
