Recovery and patient transport tables with fixed height
Model 60-..
Model 60-00 (upholstery colour 64-711 ashgrey) with basic equipment
(picture shows chromium-plated push handle)
Model 60-00 (width: 650 mm) white powder coated (RAL 9010)
Model 60-03 (width: 650 mm) white aluminium powder coated (RAL 9006)
Model 60-04 (width: 650 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Table is movable on 4 castors Ø 100 mm, each with lock
- Longitudinal brace
- 1 push handle, RAL 9006 powder coated, at foot end
- 2 side guards lateral lowerable
- Recovery upholstery
- Dewert-hygiene-equipment
Technical data:
- Length of lying surface: 1950 mm
- Length overall: 2080 mm
- Width of lying surface: 650 mm
- Width overall: 750 mm
- Height: 690 mm
- Load capacity: 250 kg (max. weight of patient)
Equipment and technology:
(picture shows chromium-plated push handle)
- Movable on 4 castors Ø 100 mm, each with lock
- Longitudinal brace for better stability
- 1 push handle, RAL 9006 powder coated, mounted at foot end (option: at head end)
- 2 side guards lateral lowerable (foldable), RAL 9006 powder coated, length: 820 mm
- Recovery upholstery: Pleasant resting comfort due to medium-soft upholstery with cold foam cover
- Dewert-hygiene-equipment: Enables optimal cleaning and disinfection
- Frame construction made of square pipe 30 x 30 x 2 mm
- With cross brace between the feet
- Two stable parallel mounted safety metal rachets for positive adjustment of head part
- Galvanised steel hinges connect the upholstery parts
- Pairs of feet and frame are screwed together tightly
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless adjustable (0° - +75°) by gas spring (sitting position), length head part: 750 mm
- Foot part: fixed, length foot part: 1200 mm
Recovery upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of foam in volume weight of 45 and cold foam cover for a comfortable lying surface
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option
Loss of standard mobility
Movable on 4 castors,
Ø 125 mm, each with
total lock
Movable on twin castors,
Ø 100 mm with central lock
(not in case of chromium-
plated frame)
Movable on twin castors,
Ø 125 mm with central lock
(not in case of chromium-plated
frame)
- Loss of standard mobility (Movable on 4 castors, Ø 100 mm, each with lock) (art. no. 1182)
- Movable on 4 castors, Ø 125 mm, each with lock (art. no. 1140-11)
- Movable on twin castors, Ø 100 mm, with central lock (art. no. 1180N)
- Movable on comfort-twin castors, Ø 125 mm, with central lock (art. no. 1185)

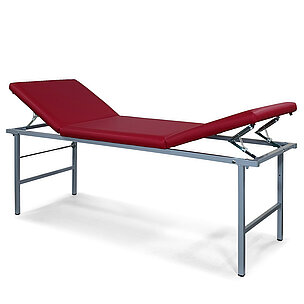

Additional second head
part of the same size,
adjustable by 2 metal
rachets
Nose opening
Art. no. 1620
Upholstery part to close
- Additional second head part of the same size, adjustable by 2 metal rachets (art. no. 1662)
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder,
for width 650 mm / 800 mm
- Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1210)
- Paper roll holder for width 800 mm, width of paper: 690 mm (art. no. 1220)
- Width of lying surface 800 mm (art. no. 60-800)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
2 side guards lateral lowerable (foldable), RAL 9006 powder coated, length: 820 mm
1 side guard tiltable, chromium-plated,
completely made of steel tube,
length: 700 mm
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- 1 pair of side guards lateral lowerable, RAL 9006 powder coated, completely made of steel tube, length: 820 mm (art. no. 1088)
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (art. no. 1005)
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
1 piece of side rail,
length: 350 mm
Art. no. 1420
1 piece of side rail,
length: 1300 mm
1 attachment clamp for
side rail, suitable for pipe:
Ø 18 mm
1 arm rest for side rail,
without attachment clamp
Storage basket with mounting,
measures:
L. 530 x W. 370 x H. 80 mm
Infusion pole, without
attachment clamp
- Side rail, length: 350 mm (art. no. 1410)
- Side rail, length: 1300 mm (art. no. 1420)
- Attachment clamp for side rail, suitable for pipe: Ø 18 mm (art. no. 1430)
- Arm rest for side rail, without attachment clamp (art. no. 1440)
- Storage basket, measures: L. 530 x W. 370 x H. 80 mm (art. no. 1850)
- Infusion pole, without attachment clamp (art. no. 1450)

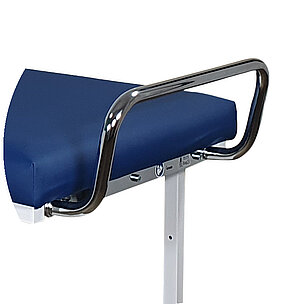

Additional push handle
(picture shows chromium-plated push handle)
- Additional push handle, RAL 9006 powder coated (art. no. 1810)
