Recovery and patient transport table with hydraulic height adjustment
Model 2310-..XL/H

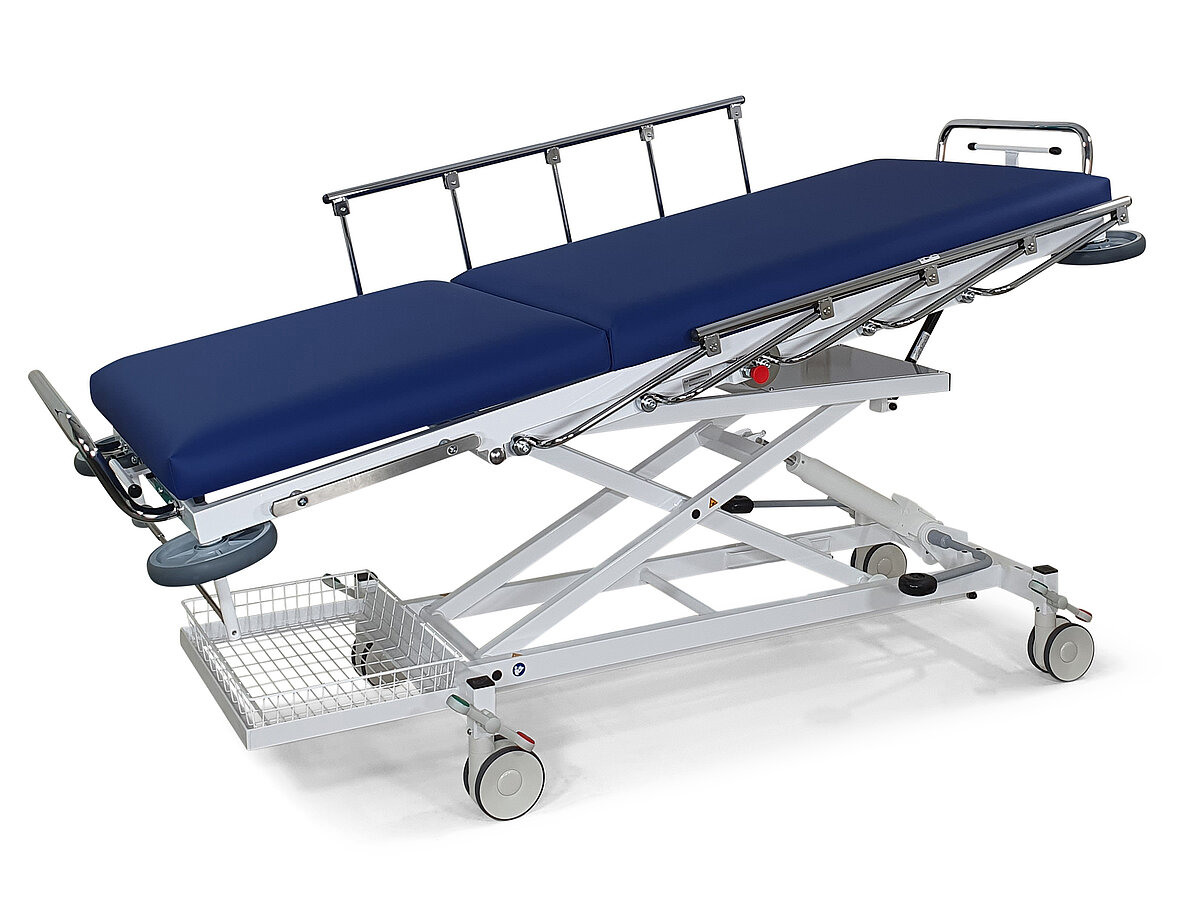

Model 2310-00XL/H (upholstery colour 64-717 deep sea) with options:
Width 800 mm (2310-800), paper roll holder (1268K), side rail (1410), storage basket (1850)
(picture shows chromium-plated push handle)

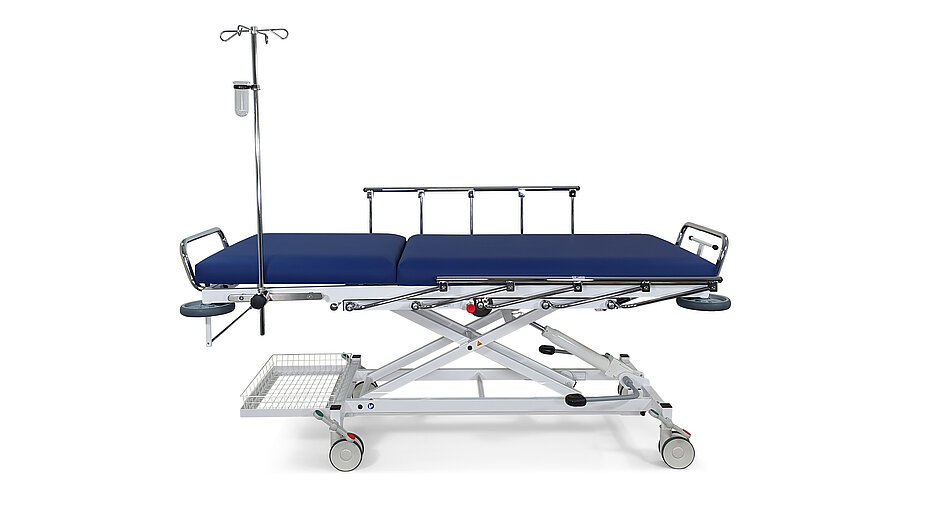

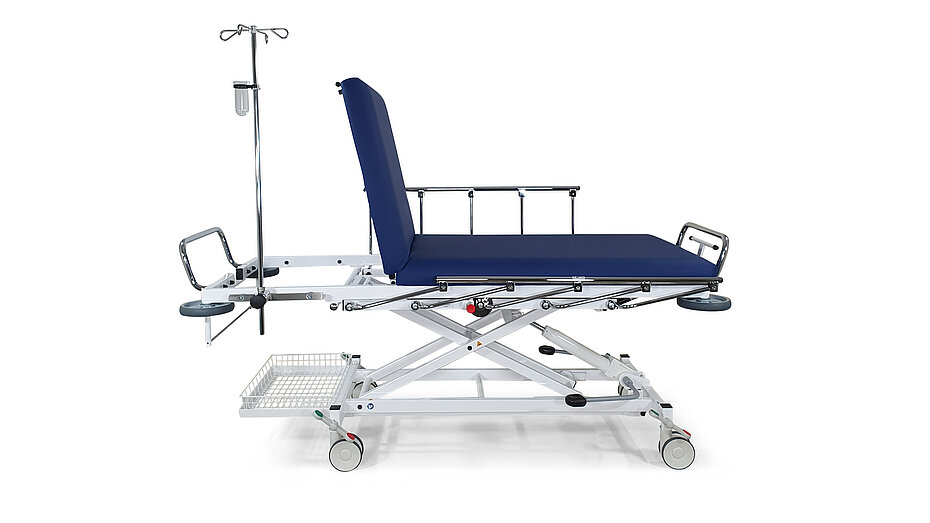

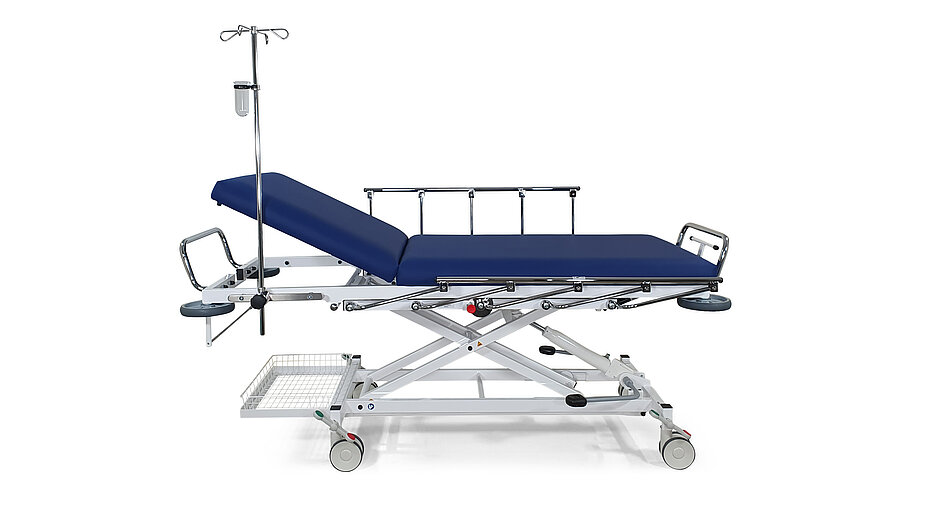

Picture with infusion pole additionally: Attachment clampfor side rail (1430), 1 infusion pole for side rail (1450) (with extra)
Model 2310-00XL/H (width: 650 mm) white powder coated (RAL 9010)
Model 2310-03XL/H (width: 650 mm) white aluminium powder coated (RAL 9006)
Model 2310-04XL/H (width: 650 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned
- Lying surface is adjustable to inclined position (Trendelenburg) till 12°
- Pedals for foot-controlled height positioning on both sides of the table
- Movable on 4 comfort twin castors, Ø 125 mm, with total lock
- 2 push handles
- 2 side guards lateral lowerable
- 4 wall protection bumpers
- Recovery upholstery
- Dewert-hygiene-equipment
Technical data:
- Height adjustment by hydraulic pump (640 mm – 1060 mm)
- Length of lying surface: 1950 mm
- Length overall: 2200 mm
- Width of lying surface: 650 mm
- Width overall: 800 mm
- Load capacity: 250 kg (max. weight of patient)
Height adjustment:
- Manual foot operated height adjustment (640 mm - 1060 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Equipment and technology:
- Movable on 4 comfort twin castors Ø 125 mm, with central lock
- 2 push handles mounted at head end and at foot end
- 2 side guards lateral lowerable, lay down besides upholstery, below upholstery surface level, chromium-plated, safe fixation in upper and lower position, length side guard: 1060 mm
- 4 wall protection bumpers Ø 200 mm, mounted at upper frame
- Recovery upholstery: Pleasant resting comfort due to medium-soft upholstery with cold foam cover
- Dewert-hygiene-equipment: Enables optimal cleaning and disinfection
Width 800 mm (2310-800), Paper roll holder (1268K), side rail (1410), storage basket (1850)
(picture shows chromium-plated push handle)
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable double frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Easy hygiene because of an open construction
- Load capacity: 250 kg
Upholstery:
Lying surface:
2-sectioned:

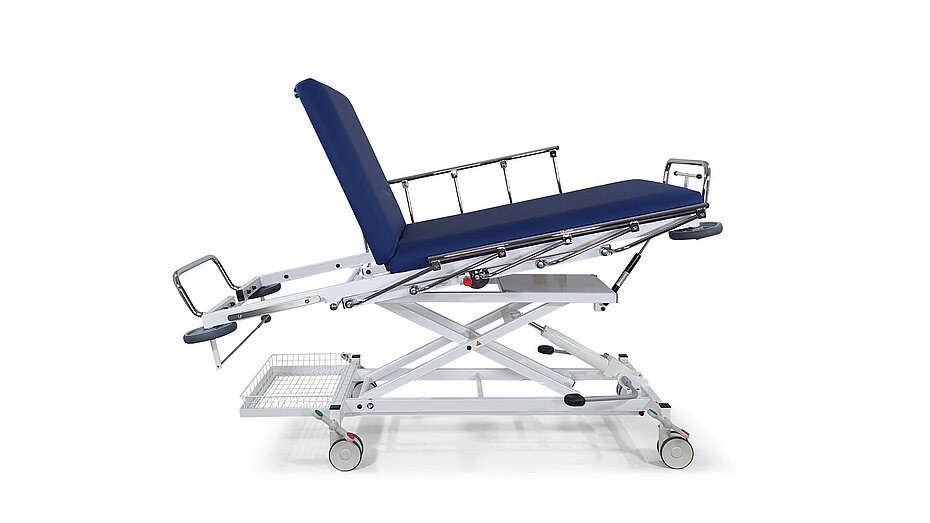

- Head part stepless upwards (+75°) adjustable by gas spring (sitting position), length head part: 750 mm
- Foot part: fixed, length foot part: 1200 mm

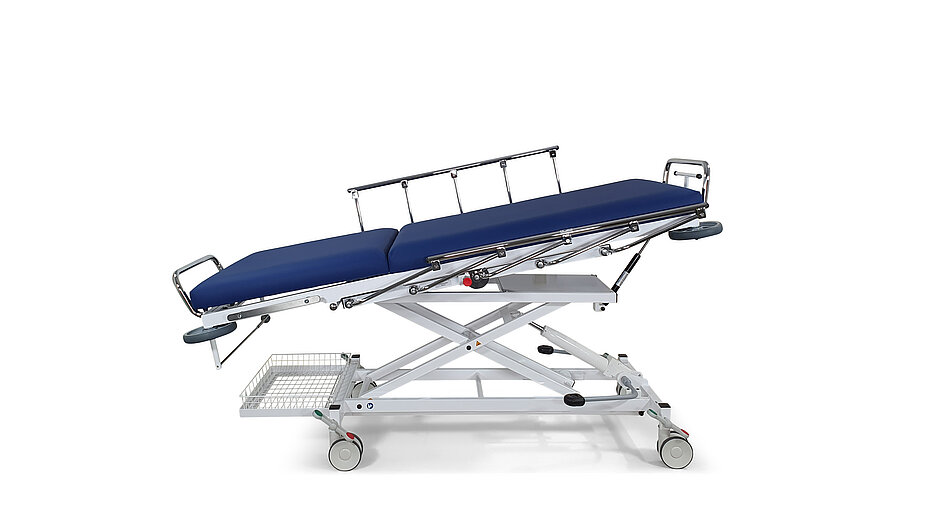

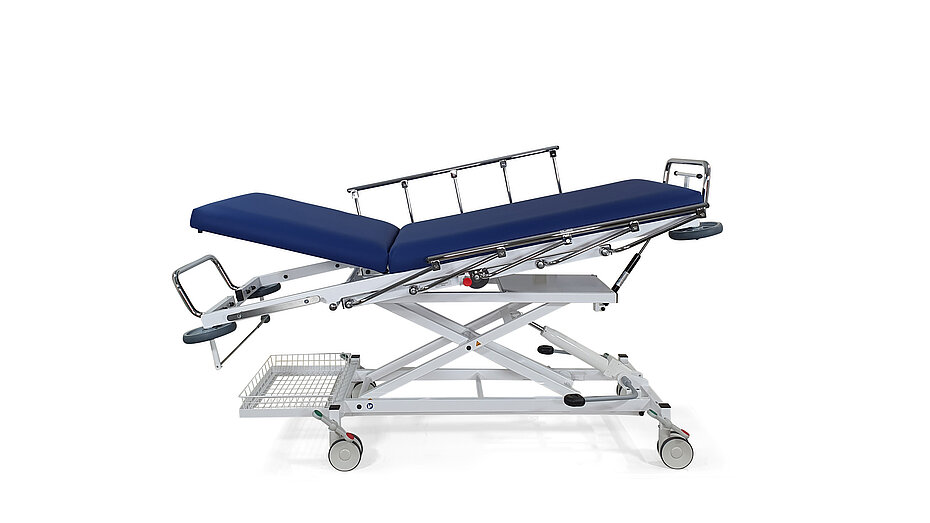

- Lying surface is adjustable to inclined position (Trendelenburg) till 12° by gas spring
Recovery upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of foam in volume weight of 45 and cold foam cover for a comfortable lying surface
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option:
Without basic mobility
Movable on comfort twin
castors, Ø 150 mm with
central lock, antistatic,
basic height + 70 mm
Footbar for central lock,
at foot end
- Loss of standard mobility (art. no. 1185-EF)
- Movable on comfort castors, Ø 150 mm, with central lock, antistatic, basic height + 70 mm (art. no. 1195)
- Footbar for central lock (art. no. 1199)
- 5th castor, connectible, in the centre of the under frame (art. no. 1190)
Paper roll holder, mounted
under head part, for width 650
mm / 800 mm
- Paper roll holder, mounted under head part, for width 650 mm / 800 mm (Art. no. 1267K / 1268K)
- Width of upholstery 800 mm, width overall 950 mm (Art. no. 2220-800)
- Soft covering for pleasant resting comfort, for width 650 mm / 800 mm, thickness 80 mm (Art. no. 1765 / 1780)
Without standard side rail (1 piece)
1 side guard tiltable, chromium-plated,
completely made of steel tube,
length: 700 mm
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm
- Without standard side rail (1 piece) lateral lowerable, chromium-plated, completely made of steel tube (Art. no. 1080-EF)
- 1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm, with wall protection bumpers Ø 150 mm (Art. no. 1040)
- 1 side guard to fit on side rail, with attachment clamp, chromium-plated, length: 800 mm (Art. no. 1005)
1 piece of side rail, length: 350 mm
1 attachment clamp for side rail,
suitable for pipe: Ø 18 mm
Infusion pole for side rail, without
attachment clamp
Storage basket with mounting
- 1 piece of side rail, length: 350 mm (Art. no. 1410)
- 1 attachment clamp for side rail, suitable for pipe: Ø 18 mm (Art. no. 1430)
- Infusion pole for side rail, without attachment clamp (Art. no. 1450)
- Storage basket with mounting, measures: L. 530 x W. 370 x H. 80 mm (Art. no. 1850)
