Recovery and patient transport tables with height and inclination adjustment
Model 2410-..XL/H

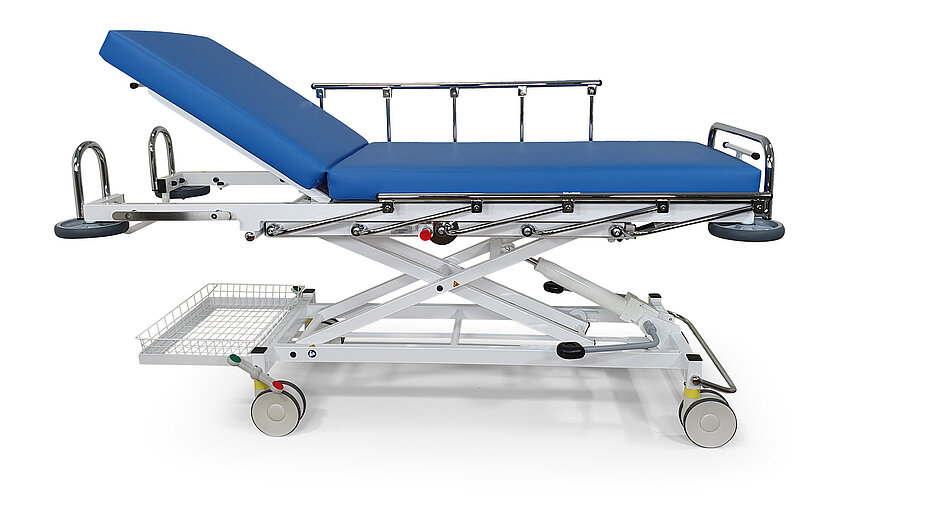

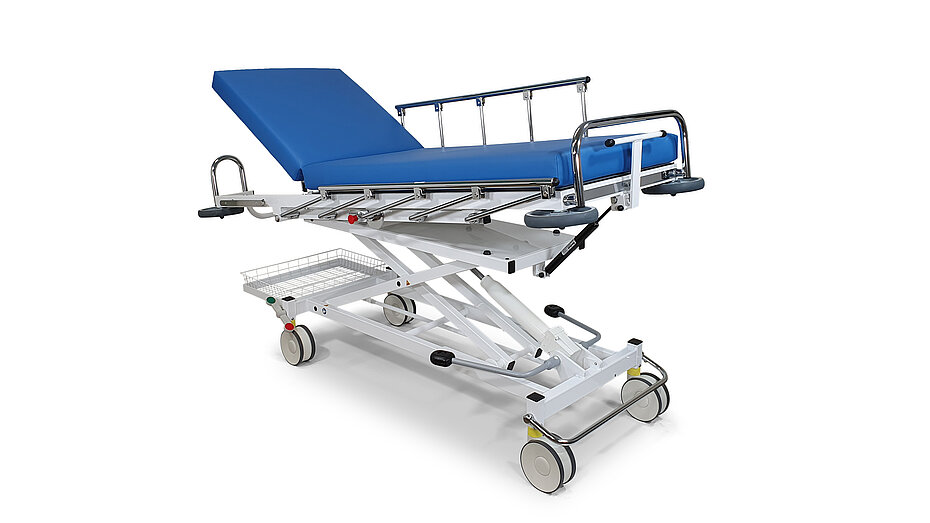

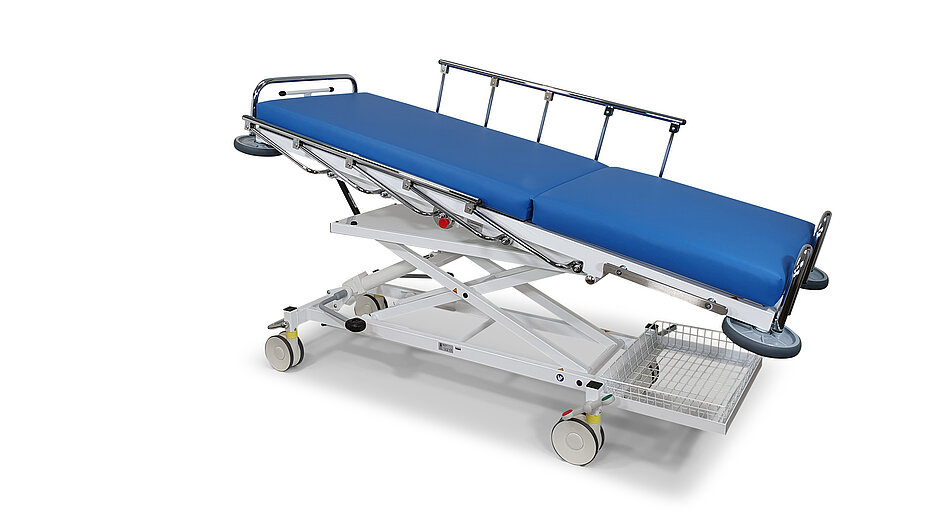

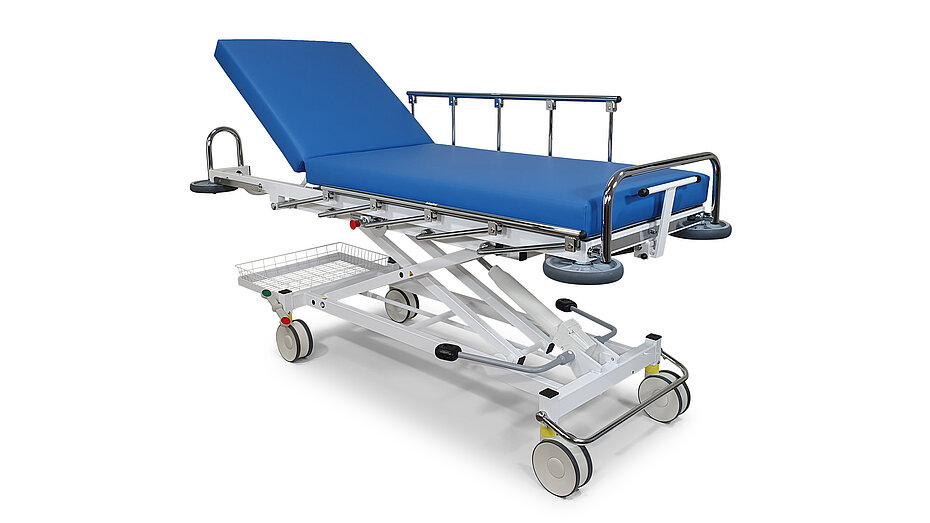

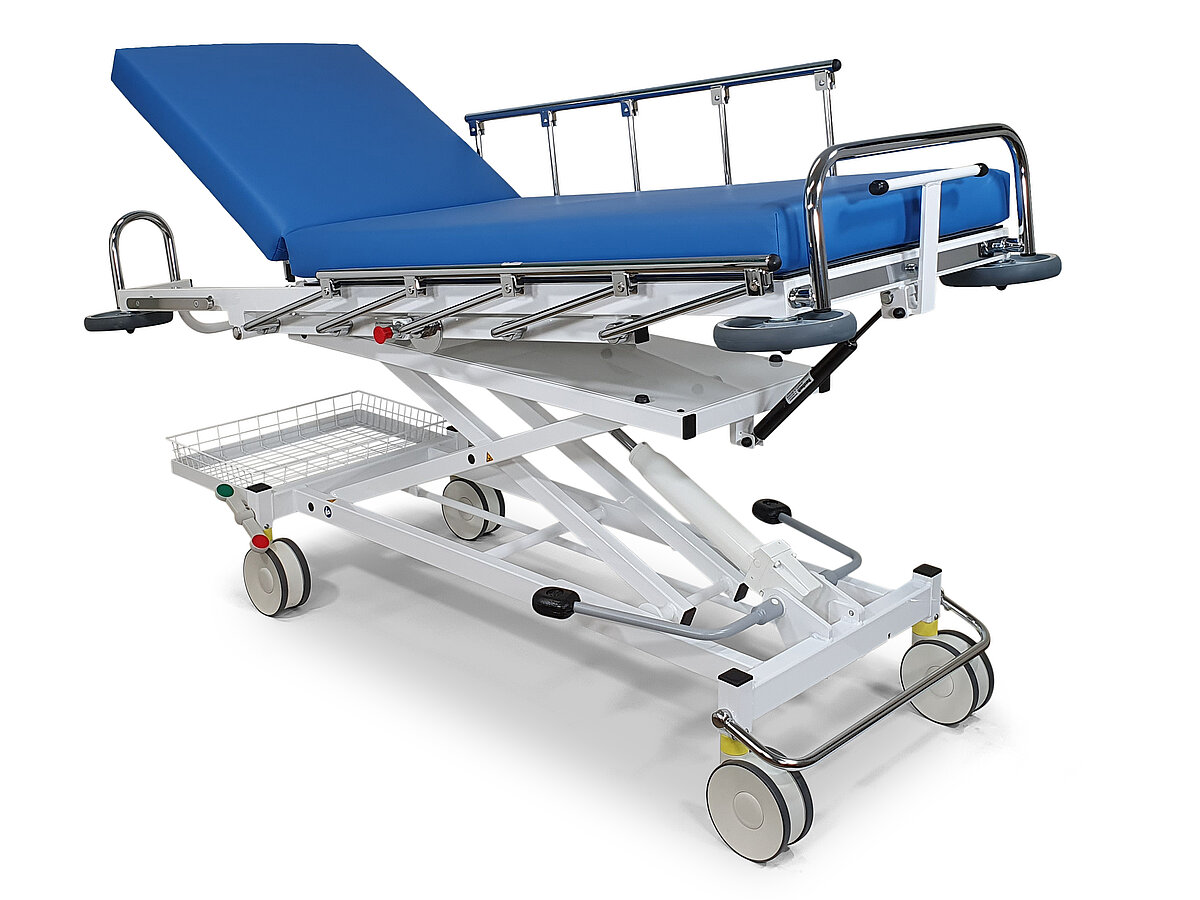

Model 2410-00XL/H (upholstery colour 64-174 sky) with option: Storage basket (1850)
(picture shows chromium-plated push handle)
Model 2410-00XL/H (width: 650 mm) white powder coated (RAL 9010)
Model 2410-03XL/H (width: 650 mm) white aluminium powder coated (RAL 9006)
Model 2410-04XL/H (width: 650 mm) grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 2-sectioned, with detachable mattress

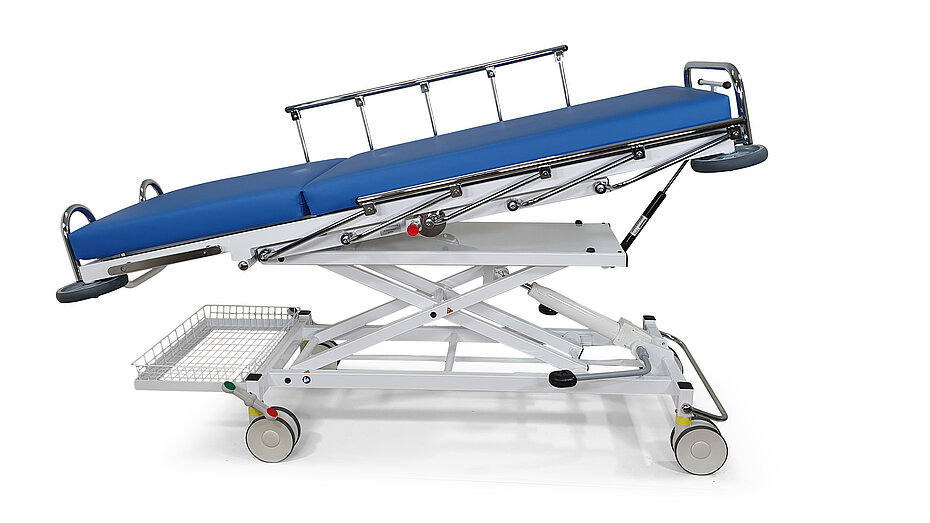

- Lying surface is adjustable to inclined position (Trendelenburg) till 12°
- Movable on 4 castors with central lock, antistatic
- 2 push handles
- 2 side guards lateral lowerable
- 4 wall protection bumpers
- Dewert-hygiene-equipment
Technical data:
- Height adjustment by hydraulic pump (690 mm – 1110 mm)
- Lying surface is adjustable to inclined position (Trendelenburg) till 12°
- Length of lying surface: 1930 mm
- Length overall: 2030 mm
- Width of lying surface: 650 mm
- Width overall: 800 mm
- Load capacity: 250 kg (max. weight of patient)
Height adjustment:
- Manual foot operated height adjustment (690 mm - 1110 mm) by a hydraulic pump with a pressure capacity of 10000 N
- Pedals for foot-controlled height positioning on both sides of the table
Equipment and technology:
- Movable on 4 comfort twin castors Ø 125 mm, with central lock; antistatic
- Push handles; 2 at head end and 1 at foot end;
- 2 side guards lateral lowerable, lay down besides upholstery, below upholstery surface level, chromium-plated, safe fixation in upper and lower position, length side guard: 1060 mm
- 4 wall protection bumpers Ø 200 mm, mounted at upper frame
- Detachable mattress, mattress with Velcro fastening and zipper at the bottom
- Dewert-hygiene-equipment: Enables optimal cleaning and disinfection
upholstery colour: 64-174 sky
- Robust frame construction which is proven in demanding everyday life of hospitals since years
- Very stable double frame scissor lifting system, with high torsional stiffness by using thick-walled square tubes with big dimensions, also for under and upper frame and scissor
- High stability due to massive 20 mm axes and multiple bearings in an igus® bushing
- Easy hygiene because of an open construction
- Load capacity: 250 kg
Upholstery:
Lying surface:
2-sectioned:
- Head part stepless upwards (+70°) adjustable by gas spring (sitting position), length head part: 730 mm
- Foot part: fixed, length foot part: 1200 mm
- Lying surface is adjustable to inclined position (Trendelenburg) till 12° by gas spring
Upholstery:
- Detachable mattress, thickness: 10 cm
- Upholstery made of high-quality resilience (cold) foam, covered with leatherette
- Mattress with Velcro fastening and zipper at the underside
- Support plate for mattress made of HPL panels (resistant to disinfectants)
- Dewert-hygiene-equipment:
- Artificial leather underneath the upholstery
- Vent holes underneath the upholstery, closed by special caps with valve function
- Easy hygiene because of an open construction
- Option: Artificial leather Skai Toronto EN with staynu
Upholstery covering:
Available as an option:
- 5th castor, connectible, in the centre of the under frame (art. no. 1190)
- Paper roll holder, mounted under head part, for width 650 mm / 800 mm (Art. no. 1267K / 1268K)
- Width of upholstery 800 mm, width overall 950 mm (Art. no. 2420-800)

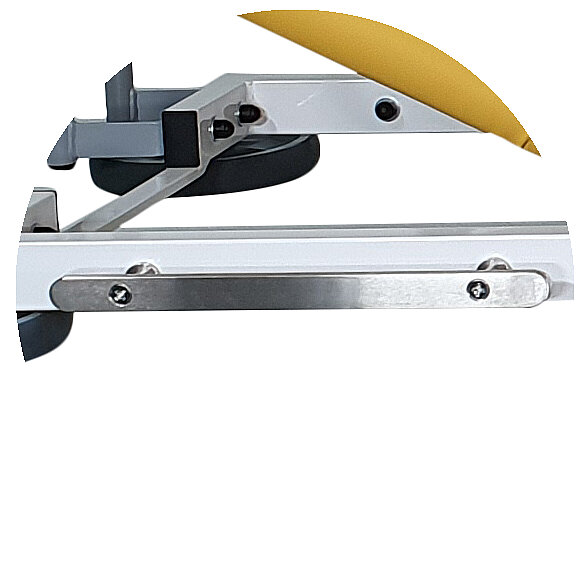

1 piece of side rail, length: 350 mm
1 attachment clamp for side rail,
suitable for pipe: Ø 18 mm
Infusion pole for side rail, without
attachment clamp
Storage basket with mounting
- 1 piece of side rail, length: 350 mm (Art. no. 1410)
- 1 attachment clamp for side rail, suitable for pipe: Ø 18 mm (Art. no. 1430)

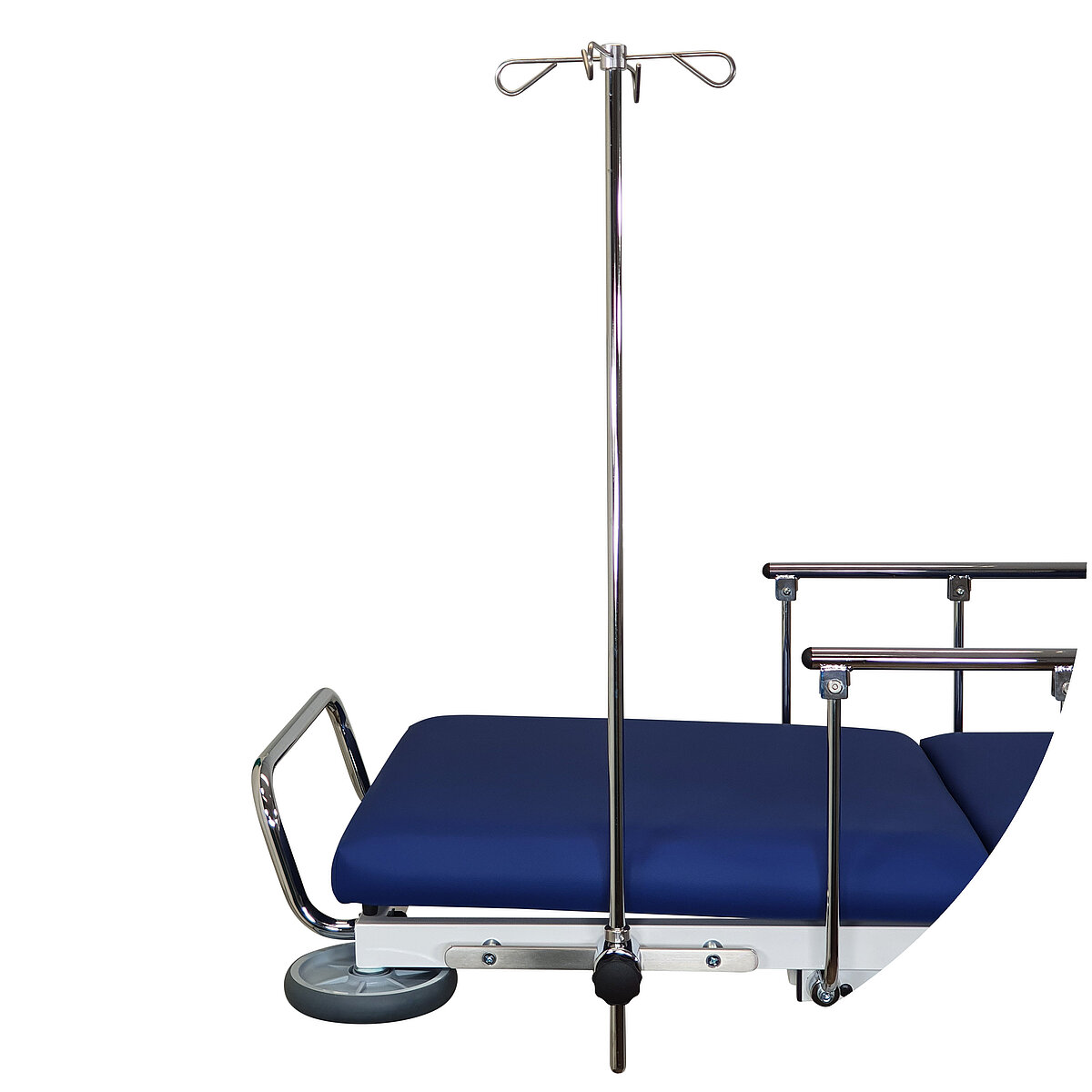

- Infusion pole for side rail, without attachment clamp (Art. no. 1450)

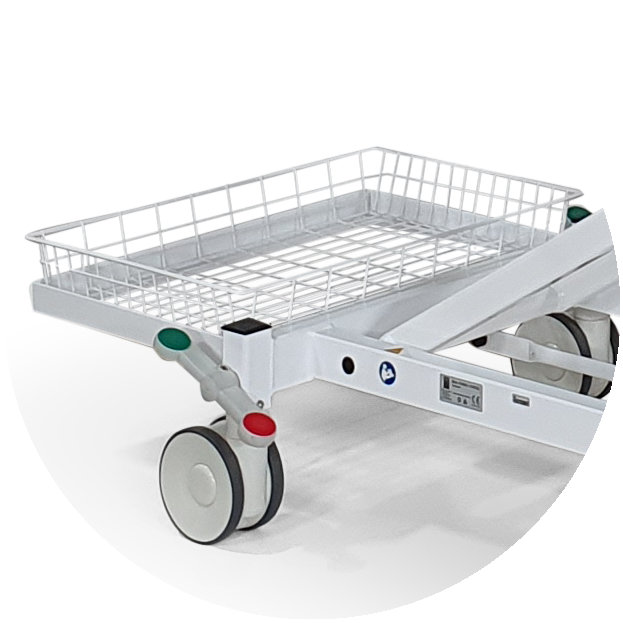

- Storage basket with mounting, measures: L. 530 x W. 370 x H. 80 mm (Art. no. 1850)
