Model 113-.. and 114-..

Table with fixed height made of square tube

Model 113-.. and 114-..

Kurzliege, Liege mit variabler Länge aus Vierkantrohr - Modell 113-04 2

Kurzliege, Liege mit variabler Länge aus Vierkantrohr - Modell 113-04 3

Kurzliege, Liege mit variabler Länge aus Vierkantrohr - Modell 113-04 4

Kurzliege, Liege mit variabler Länge aus Vierkantrohr - Modell 113-04 5

Kurzliege, Liege mit variabler Länge aus Vierkantrohr - Modell 113-04 6

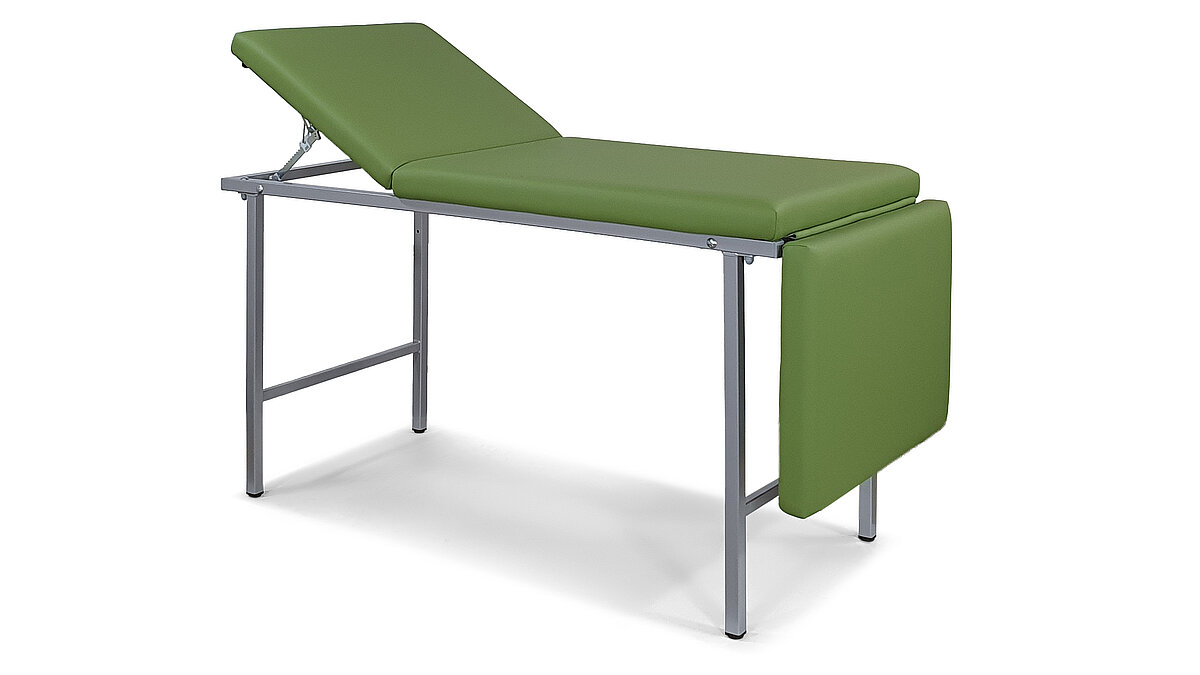

Table green:
Model 113-04 (upholstery colour 64-714 olive green) with basic equipment

Table grey:
Model 113-01 (upholstery colour 64-712 slate grey) with option: Paper roll holder (1210)

Modell 113-00 (width 650 mm) white powder coated (RAL 9010)
Modell 114-00 (width 800 mm) white powder coated (RAL 9010)

Modell 113-01 (width 650 mm) chromium-plated
Modell 114-01 (width 800 mm) chromium-plated

Modell 113-03 (width 650 mm) white aluminium powder coated (RAL 9006)
Modell 114-03 (width 800 mm) white aluminium powder coated (RAL 9006)

Modell 113-04 (width 650 mm) grey aluminium powder coated (RAL 9007)
Modell 114-04 (width 800 mm) grey aluminium powder coated (RAL 9007)

From left to right: white (RAL 9010), white aluminium (RAL 9006), grey aluminium (RAL 9007)

For the configuration of your frame, you can choose from a range of different colours:
chromium-plated, white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*

^{*Due to technical reasons colour deviations of shown and origin colours are possible.}

Other colours possible on request.
Do not hesitate to contact us!

Pandoria Plus: From top left (white) to bottom right (fuchsie)
Toronto EN: From bottom right (stone blue) to top left (rosé)

We present our colour palette in two different qualities for the colour configuration of your upholstery:

Skai Toronto EN with staynu
and
Skai Pandoria Plus

Click here for colour selection

Information sheet model 113, 114 (pdf)

Basic equipment:

Lying surface: 3-sectioned
Foot part can be hinged vertical
Head part upwards adjustable
Table is not movable
Possibility to pin on a paper roll holder on head side and foot side
Dewert-hygiene-equipment

Technical data:

Length overall: min. 1600 mm, max. 1950 mm
Width overall:
Model 113-..: 650 mm
Model 114-..: 800 mm
Height: 800 mm
Load capacity (foot part vertical downwards): 250 kg

Technology:

Frame construction made of square pipe 30 x 30 x 2 mm
With cross brace for better stability between the feet
Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility (longitudinal brace necessary)
Two stable parallel mounted safety metal rachets for positive adjustment of head part
Galvanised steel hinges connect the upholstery parts
Pairs of feet and frame are screwed together tightly

Upholstery:

Lying surface:

3-sectioned:

Head part upwards (+30°) adjustable by 2 metal rachets, length head part: 550 mm
Middle part: fixed, length middle part: 920 mm
Foot part stepless adjustable (-90° - +10°) by gas spring (can be hinged vertical), length foot part: 480 mm

Upholstery:

Thickness of upholstery: 80 mm
Upholstery base: Multiple glued, high-strength laminated wood panel
The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
Dewert-hygiene-equipment:
o Hinge lid made of identical upholstery covering
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu

Upholstery covering:

Please choose between 2 different variants of leatherettes

Available as an option

Art. no. 1120-10
Movable on 4 castors,
Ø 100 mm, each with
total lock

Movable on 4 castors, Ø 100 mm, each with lock (art. no. 1120-10)

→ Longitudinal brace necessary

Art. no. 1310
Longitudinal brace for
additional stability,
necessary in case of
mobility

Longitudinal brace for additional stability, necessary in case of mobility (art. no. 1310)

Art. no. 1655-20
Head part stepless adjustable
by gas spring (0° to +55°)

Art. no. 1610
Nose opening
Art. no. 1620
Upholstery part to close

Head part stepless adjustable by gas spring (art. no. 1655-20)
Nose opening (in head part) (art. no. 1610)
Upholstery part to close the opening (art. no. 1620)

Papierrollenhalter für Liegen mit fester Höhe - Serie DFH — Art. no. 1210 / 1220
Paper roll holder,
for width 650 mm / 800 mm

Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1210)
Paper roll holder for width 800 mm, width of paper: 690 mm (art. no. 1220)

Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
Soft covering for pleasant resting comfort, for width 800 mm, thickness 80 mm (art. no. 1780)
Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
Upholstery medium-soft (cold foam cover), for width 800 mm, thickness 70 mm (art. no. 1782)

Art. no. 1088
2 side guards lateral lowerable (foldable), RAL 9006 powder coated, length: 820 mm

Art. no. 1040
1 side guard tiltable, chromium-plated,
completely made of steel tube,
length: 700 mm

Art. no. 1005
1 side guard to fit on side rail, with
attachment clamp, chromium-plated,
length: 800 mm

1 pair of side guards lateral lowerable, RAL 9006 powder coated, completely made of steel tube, length: 820 mm (art. no. 1088)
1 side guard to fit on side rail, with attachment clamp, chromium-plated, completely made of steel tube, length: 800 mm (art. no. 1005)
1 side guard tiltable, chromium-plated, completely made of steel tube, length: 700 mm (art. no. 1040)
