Table with fixed height made of round tube
Model 122-..

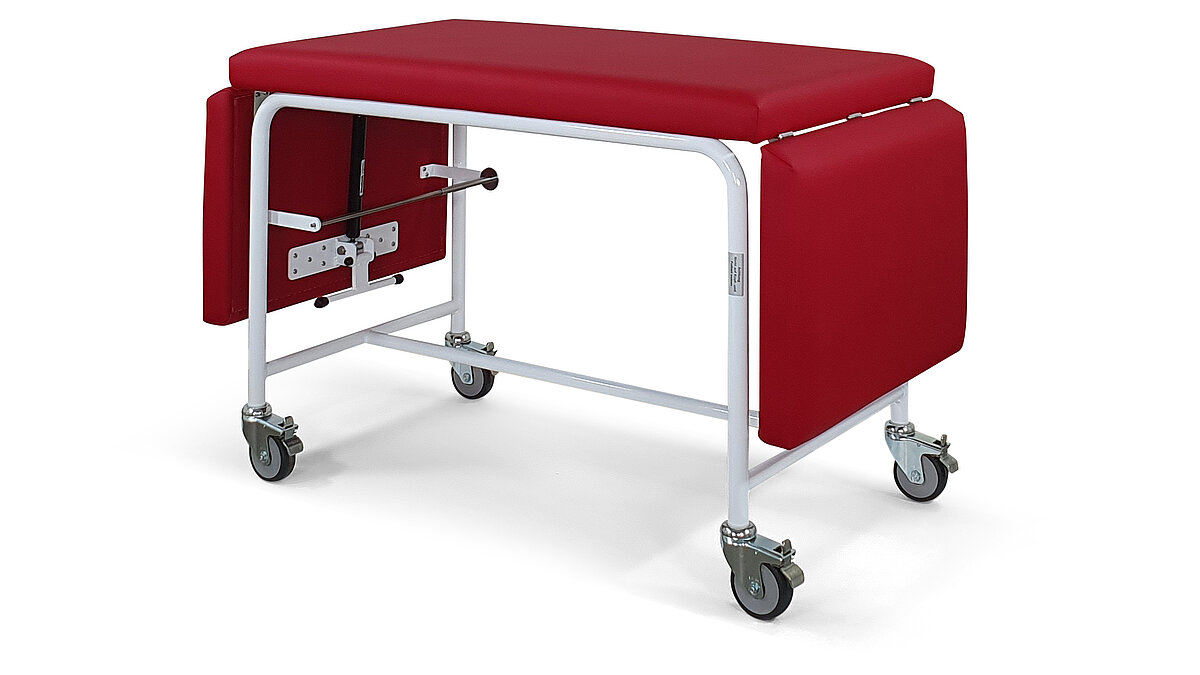

Model 122-00 (upholstery colour 64-708 cherry) with options:
Movable on castors, each with lock (1120-10), paper roll holder (1265K)
Model 122-00 white powder coated (RAL 9010)
Model 122-01 chromium-plated
Model 122-03 white aluminium powder coated (RAL 9006)
Model 122-04 grey aluminium powder coated (RAL 9007)
For the configuration of your frame, you can choose from a range of different colours:
chromium-plated, white (RAL 9010), white aluminium (RAL 9006) and grey aluminium (RAL 9007)*
*Due to technical reasons colour deviations of shown and origin colours are possible.
Other colours possible on request.
Do not hesitate to contact us!
Toronto EN: From bottom right (stone blue) to top left (rosé)
We present our colour palette in two different qualities for the colour configuration of your upholstery:
- Skai Toronto EN with staynu
and - Skai Pandoria Plus
Basic equipment:
- Lying surface: 3-sectioned
- Head part and foot part can be hinged vertical
- Table is not movable
- Longitudinal brace
- Dewert-hygiene-equipment
Technical data:
- Length overall: min. 1300 mm, max. 2020 mm
- Width overall: 650 mm
- Height: 800 mm
- Load capacity (head part and foot part vertical downwards):
250 kg
Technology:
upholstery colour: 64-708 cherry
- Frame construction made of round tube 32 x 2 mm
- With cross brace between the feet and ongitudinal brace for better stability
- Table not movable, including height adjustment screws to compensate for uneven ground
Option: Mobility (longitudinal brace necessary) - Galvanised steel hinges connect the upholstery parts
- Frame welded as one unit (powder coated) or assembled out of 2 components (chromium-plated)
Upholstery:
Lying surface:
3-sectioned:
- Head part stepless adjustable (-90° - +25°) by gas spring (can be hinged vertical), length head part: 450 mm
- Middle part: fixed, length middle part: 1120 mm
- Foot part stepless adjustable (-90° - +25°) by gas spring (can be hinged vertical), length foot part: 450 mm
Upholstery:
- Thickness of upholstery: 80 mm
- Upholstery base: Multiple glued, high-strength laminated wood panel
- The padding is made of 2 different foam types: Both are pure foam in volume weight of 45 and 75
- Each layer comprises a homogeneous, closed cellular structure with evenly distributed volume weight
- Dewert-hygiene-equipment:
o Artificial leather underneath the upholstery
o Vent holes underneath the upholstery, closed by special caps with valve function
o Easy hygiene because of an open construction
o Option: Artificial leather Skai Toronto EN with staynu
Upholstey covering:
Available as an option
Movable on 4 castors,
Ø 100 mm, each with
total lock
- Movable on 4 castors, Ø 100 mm, each with lock (art. no. 1120-10)
Nose opening
Art. no. 1620
Upholstery part to close
- Nose opening (in head part) (art. no. 1610)
- Upholstery part to close the opening (art. no. 1620)
Paper roll holder,
for width of lying surface 650 mm
- Paper roll holder for width 650 mm, width of paper: 540 mm (art. no. 1265K)
- Soft covering for pleasant resting comfort, for width 650 mm, thickness 80 mm (art. no. 1765)
- Upholstery medium-soft (cold foam cover), for width 650 mm, thickness 70 mm (art. no. 1762)
